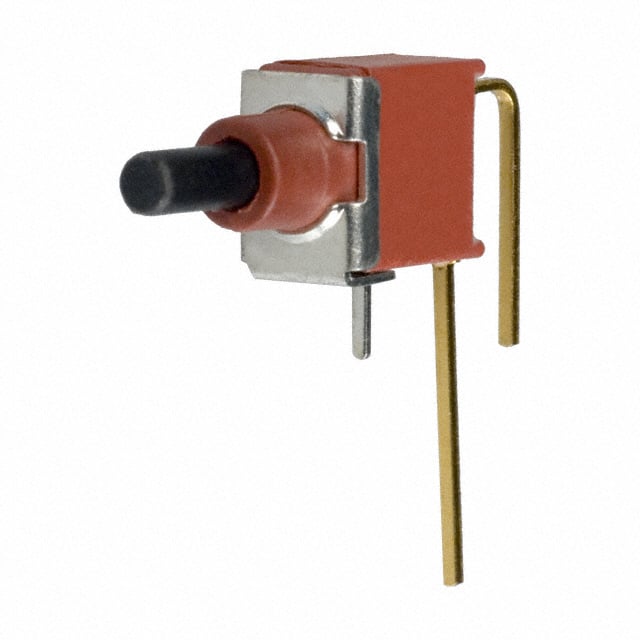

EP11SD1AVBE The C&K Components EP11SD1AVBE is a sealed tiny pushbutton switch with an SPST-NO circuit. It offers a contact rating of 0.4VA at 20V and features epoxy sealed terminals.
Mfr Part #:

EP11SD1AVBE

Available from 2 distributors
Mfr Name: C&K Components
C&K Components
The C&K Components EP11SD1AVBE is a sealed tiny pushbutton switch with an SPST-NO circuit. It offers a contact rating of 0.4VA at 20V and features epoxy sealed terminals.
✓ Total Stock: 660 pcs
$ Price Range: $0.75

EP11SD1AVBE Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
AA2DE ✓
Non-Authorised Inventory information
630 pcs
On Request
630 pcs On Request 1 On Request On Request On Request On Request On Request
Partservice ✓
Non-Authorised Inventory information
30 pcs
On Request
30 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

EP11SD1AVBE Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Actuator Marking
Actuator Type
Circuit
Color
Contact Resistance
Current Rating (Amps)
Features
Ingress Protection
Insulation Resistance
Lead Style
Mounting Type
Operating Temperature
Storage Temperature
Switch Function
Tape & Reel
Termination Style
Type
Voltage Rating
View Similar Products (0)

EP11SD1AVBE Description

Short technical summary and product information.

The C&K Components EP Series EP11SD1AVBE is a sealed tiny pushbutton switch designed for applications in telecommunications and networking. This switch features an SPST-NO circuit with a contact rating of 0.4VA maximum at 20V AC or DC. It is sealed against solder and cleaning processes, ensuring durability in harsh environments.



The EP11SD1AVBE has an operating temperature range of -30°C to 85°C and an ingress protection rating of IP57, providing protection against dust and temporary immersion.



Mounting is via through-hole, right-angle, vertical PC pins. The switch features epoxy sealed terminals for enhanced reliability. Its construction includes a high-temperature nylon case and a thermoplastic polyester or glass-filled nylon plunger.



This pushbutton switch is suitable for use in telecommunications and networking equipment, computers and peripherals, and instrumentation and controls.

EP11SD1AVBE Quick Information

Product Type: Pushbutton Switch
Series: EP Series
Canonical Name: C&K Components EP11SD1AVBE Sealed Tiny Pushbutton Switch
Subcategory: Sealed Tiny Pushbutton Switches

EP11SD1AVBE Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

EP11SD1AVBE Estimated Pricing

Qty Low High
1+ $0.75 $0.75

Estimated market price range - modelled values for guidance only, not live distributor offers.

EP11SD1AVBE Features

  • Sealed against solder and cleaning processes.
  • SPST-NO circuit, 0.4VA 20V rating.
  • IP57 ingress protection rating.
  • Through-hole, right-angle mounting.
  • Epoxy sealed terminals.

EP11SD1AVBE Applications

  • Suitable for low-power electronic switching
  • Used in control panels and instrumentation
  • Ideal for harsh environmental conditions
  • Mounts via through-hole, right-angle, vertical

EP11SD1AVBE FAQs

5 frequently asked questions generated from this part’s specifications.
What is the contact rating for the C&K Components EP11SD1AVBE pushbutton switch?

The contact rating is 0.4 VA maximum at 20 V AC or DC.

What is the electrical life of the EP11SD1AVBE switch?

The electrical life is 60,000 make-and-break cycles at full load for EP11 and EP21 models.

What is the operating temperature range for this switch?

The operating temperature range is -30°C to 85°C.

What is the ingress protection rating of the EP11SD1AVBE?

The ingress protection rating is IP57, offering protection against harmful dust deposit and temporary immersion.

What type of mounting does the EP11SD1AVBE support?

It supports through-hole, right-angle, vertical mounting.
