| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
403 pcs
|
403 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Antenna Type | |
| Current | |
| Data Rate | |
| Frequency | |
| Modulation | |
| Mounting Type | |
| Operating Temperature | |
| Power | |
| Protocol | |
| RF Family | |
| Sensitivity | |
| Serial Interfaces | |
| Tape & Reel | |
| Utilized IC | |
| Voltage |

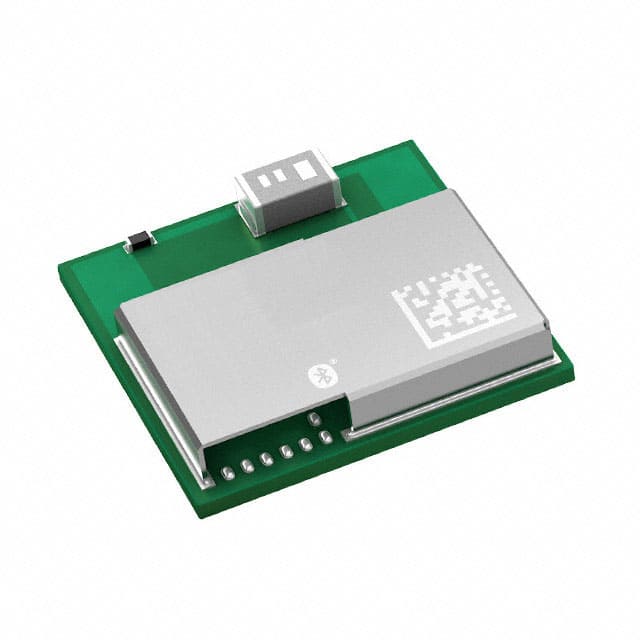

The Panasonic Electronic Components ENW-89823A3KF is an RF Transceiver Module designed for Bluetooth v4.0 communication. This module operates in the 2.4GHz frequency band, offering a data rate of up to 3Mbps. It features a sensitivity of -93dBm and an output power of 10dBm, making it suitable for various wireless applications.
The module supports GFSK modulation and utilizes the CC2564B integrated circuit. It includes integrated chip antenna and supports serial interfaces such as I²S and UART. The operating voltage range is from 1.7V to 4.8V, with a current consumption of 33mA. The operating temperature range is -40°C to 85°C.
Designed for surface mount installation, the ENW-89823A3KF comes in a module package. Its compact form factor and robust specifications make it a versatile component for embedded systems requiring wireless connectivity.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage range for the ENW-89823A3KF is 1.7V to 4.8V.
The ENW-89823A3KF operates within a temperature range of -40°C to 85°C.
This RF module supports the Bluetooth v4.0 protocol.
The ENW-89823A3KF module supports a data rate of 3Mbps.
