| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Type | |
| Voltage |

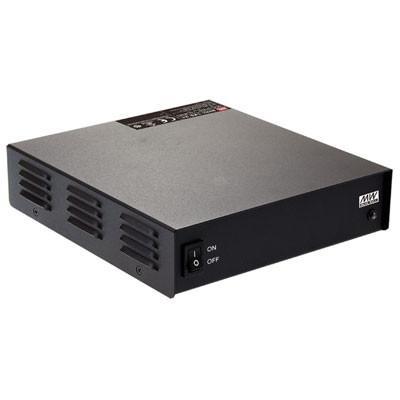

The Mean Well USA ENP-180-12 is an enclosed AC/DC converter designed for ITE (Commercial) applications. It delivers 179W of power with a single output and a maximum current of 13A.
Key electrical specifications include a universal input, adjustable output, and Power Factor Correction (PFC). The converter boasts an efficiency of 91% and can operate within a wide temperature range of -30°C to 70°C with derating.
This benchtop-mounted unit has dimensions of 192.0mm x 178.0mm x 45.5mm. It is approved by CB, CE, and cULus, indicating compliance with various safety and performance standards.
The ENP-180-12 provides 179W of power.
The ENP-180-12 is an enclosed AC/DC converter.
Key features include adjustable output, PFC, and universal input.
The operating temperature range is -30°C to 70°C with derating.
The ENP-180-12 is approved by CB, CE, and cULus.
The RoHS status is RoHS3 Compliant.
The Moisture Sensitivity Level (MSL) is 1 Unlimited.
