| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3 pcs
|
3 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Battery Capacity Range | |
| Battery Cell Size | |
| Battery Chemistry | |
| Charge Current | |
| Efficiency | |
| Features | |
| Height | |
| Input Voltage | |
| Kit Contents | |
| Length | |
| Mounting Type | |
| Number of Cells | |
| Output Connector Type | |
| Output Voltage | |
| Power | |
| Termination Style | |
| Type | |
| Voltage | |
| Weight | |
| Width |

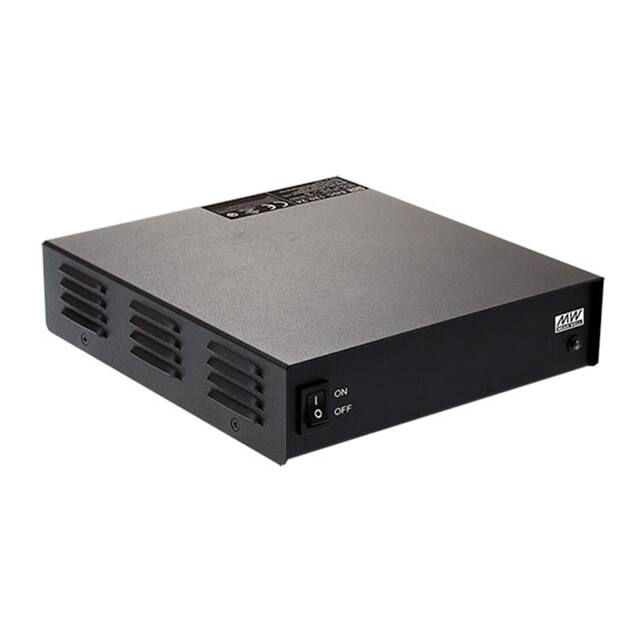

The Mean Well USA ENC-120-24 is a desktop battery charger designed for charging 24V lead acid and lithium-ion batteries. It provides a constant output voltage of 27.6V DC with a maximum charging current of 4A, suitable for batteries with capacities ranging from 15 to 40Ah.
The charger features a wide input voltage range of 90 to 264V AC, making it suitable for global use. It achieves up to 90% efficiency and includes an LED indicator for operational status. The output connection is via a screw terminal block, and the unit is supplied without a power cable.
The desktop form factor allows for easy placement on a workbench or shelf. The unit measures 192.0mm x 178.0mm x 49.8mm and weighs 991.1g. It is designed for indoor use and is RoHS3 and REACH compliant.
The input voltage range is 90 to 264 VAC.
It supports lead acid and lithium-ion batteries.
The maximum charging current is 4A.
The charger is suitable for batteries with capacity from 15 to 40Ah.
The efficiency is 90%.
Yes, it is RoHS3 compliant.
It has a screw terminal output connector.
