| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
9,214 pcs
|
9214 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
6,251 pcs
|
6251 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1 pcs
|
1 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Control Features | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Input Voltage Max | |
| Input Voltage Min | |
| Length | |
| Mounting Type | |
| Operating Temperature | |
| Output Current | |
| Output Voltage Accuracy | |
| Output Voltage Max | |
| Output Voltage Min | |
| Package / Case | |
| Protection Features | |
| Size / Dimension | |
| Soft Start | |
| Supplier Device Package | |
| Type | |
| Voltage | |
| Width |

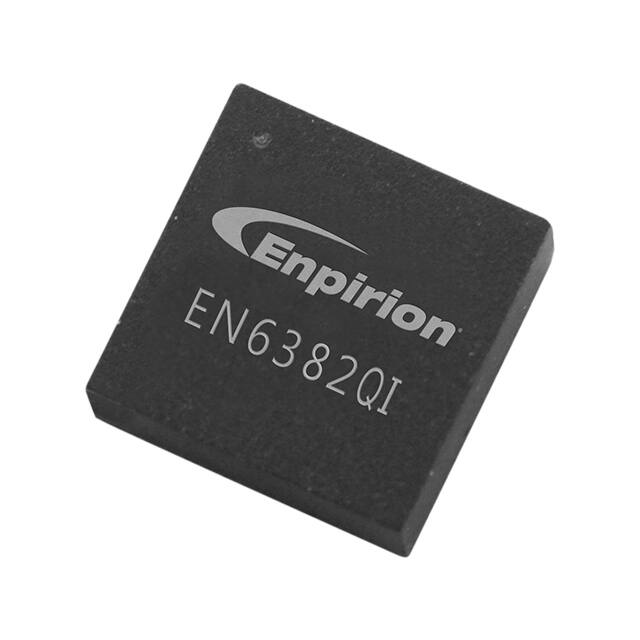

The EN6382QI is an Intel Enpirion Power System on a Chip (PowerSoC) DC-DC converter that integrates an inductor, PWM controller, MOSFETs, and compensation into a single 8x8x3mm 56-pin QFN module. It delivers up to 8A continuous output current with no de-rating, supporting an input voltage range of 3V to 6.5V and an adjustable output voltage from 0.6V to 5.9V.
Typical efficiency reaches 96% at 5V input and 3.3V output. The device includes precision enable threshold, programmable soft-start, and pre-bias monotonic start-up. Protection features include thermal, over-current, short circuit, reverse current limit, and under-voltage protection. Output voltage accuracy is 1.5%.
The module is designed for point-of-load regulation in FPGAs, ASICs, processors, DSPs, and distributed power architectures. It is surface mountable in a 56-QFN package and is RoHS3 compliant.
The EN6382QI provides up to 8A continuous output current with no de-rating.
The input voltage range is 3V to 6.5V.
The output voltage is adjustable from 0.6V to 5.9V.
Typical efficiency is 96% at VIN=5V, VOUT=3.3V.
It is available in a 56-QFN surface mount package measuring 8.0mm x 8.0mm x 3.0mm.
The operating temperature range is -40°C to 105°C.
Yes, it is RoHS3 compliant.
