| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,000 pcs
|
2000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Control Features | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Input Voltage (Nominal) | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Current Max | |
| Output Voltage Range | |
| Package / Case | |
| Supplier Device Package | |
| Type | |
| Voltage | |
| Width |

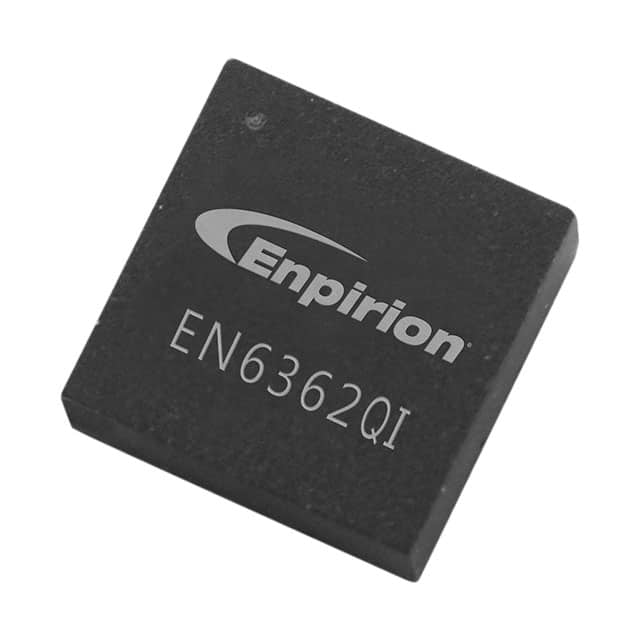

The EN6362QI is a non-isolated point-of-load (PoL) DC-DC converter module from Intel. It provides a single adjustable output voltage from 0.6V to 6.05V with a maximum output current of 6A. The module operates from a nominal 3V input and achieves up to 96% efficiency. It features enable control (active high) and includes remote on/off, overcurrent protection (OCP), overtemperature protection (OTP), short-circuit protection (SCP), and undervoltage lockout (UVLO).
The EN6362QI is housed in a 56-PowerBFQFN surface-mount package measuring 8.0mm x 8.0mm x 3.0mm. It is designed for commercial ITE (Information Technology Equipment) applications and operates over a temperature range of -40°C to 125°C. The module is RoHS3 compliant and REACH unaffected with an MSL rating of 1 (unlimited).
The output voltage is adjustable from 0.6V to 6.05V.
It is a 56-PowerBFQFN Module with a supplier device package of 56-QFN (8x8mm).
The operating temperature range is -40°C to 125°C.
Yes, it is RoHS3 compliant and REACH unaffected with MSL 1 (unlimited).
The maximum output current is 6A.
