EN6310QI The Intel EN6310QI is a 1A PowerSoC DC-DC switching regulator. It integrates the inductor, MOSFET switches, and control circuitry into a compact 4mm x 5mm QFN package.
Mfr Part #:

EN6310QI

Available from 2 distributors
Mfr Name: Intel
Intel
The Intel EN6310QI is a 1A PowerSoC DC-DC switching regulator. It integrates the inductor, MOSFET switches, and control circuitry into a compact 4mm x 5mm QFN package.
✓ Total Stock: 4,752 pcs
$ Price Range: $0.16

EN6310QI Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Components Technology Group, Inc. ✓
Non-Authorised Inventory information
3,222 pcs
On Request
3222 pcs On Request 1 On Request On Request On Request On Request On Request
Xingangxin ✓
Non-Authorised Inventory information
1,530 pcs
On Request
1530 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

EN6310QI Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Efficiency
Frequency
Function
Mounting Type
Number of Outputs
Operating Temperature
Output Configuration
Output Type
SVHC Present
Supplier Device Package
Synchronous Rectifier
Tape & Reel
Topology
Voltage
View Similar Products (0)

EN6310QI Description

Short technical summary and product information.

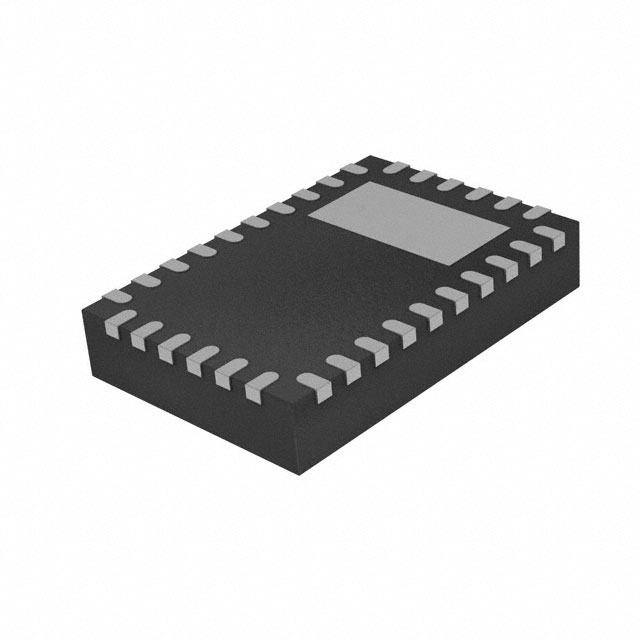

The Intel® Enpirion® EN6310QI is a highly integrated Power System on a Chip (PowerSoC) DC-DC converter designed for high-performance, low-power applications. This device combines the inductor, MOSFET switches, and compensation circuits within a small 4mm x 5mm x 1.85mm 30-pin QFN package, simplifying board design and reducing component count.



Key electrical specifications include a continuous output current of 1A, an input voltage range of 2.7V to 5.5V, and an adjustable output voltage range from 0.6V to 3.3V. It operates at a high switching frequency of 2.2MHz, achieving up to 96% efficiency and delivering fast transient response with low output ripple of typically 4mV.



The EN6310QI is suitable for applications requiring precise voltage and fast transient response, such as FPGAs (Altera MAX, Arria, Cyclone, Stratix), SERDES and IO supplies, solid-state drives, and noise-sensitive wireless/RF applications. It offers integrated protection features including Under Voltage Lock-out (UVLO), short circuit, over current, and thermal protection.



Designed for ease of use, Intel Enpirion Power Solutions simplify board layout and manufacturing. The surface mountable 30-QFN package requires minimal board space, contributing to a solution footprint of less than 65mm².

EN6310QI Quick Information

Product Type: DC-DC Switching Regulator
Series: Enpirion
Canonical Name: EN6310QI 1A PowerSoC Step-Down DC-DC Switching Converter
Subcategory: Switching Regulator

EN6310QI Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

EN6310QI Estimated Pricing

Qty Low High
1+ $0.16 $0.16

Estimated market price range - modelled values for guidance only, not live distributor offers.

EN6310QI Features

  • Integrated inductor, MOSFET, and controller.
  • Compact 4mm x 5mm x 1.85mm QFN package.
  • High efficiency up to 96%.
  • 1A continuous output current.
  • Adjustable output voltage from 0.6V to 3.3V.

EN6310QI Applications

  • Ideal for FPGA power supplies.
  • Suitable for SERDES and IO supplies.
  • Used in solid-state drive applications.
  • Designed for noise-sensitive RF applications.

EN6310QI FAQs

7 frequently asked questions generated from this part’s specifications.
What is the maximum continuous output current for the EN6310QI?

The EN6310QI provides a continuous output current of 1A.

What is the input voltage range for the EN6310QI?

The input voltage range for the EN6310QI is 2.7V to 5.5V.

What is the adjustable output voltage range of the EN6310QI?

The EN6310QI offers an adjustable output voltage range from 0.6V to 3.3V.

What is the switching frequency of the EN6310QI?

The switching frequency of the EN6310QI is 2.2MHz.

What is the typical output ripple for the EN6310QI?

The EN6310QI has a typical output ripple of 4mV.

What is the operating temperature range for the EN6310QI?

The operating temperature range for the EN6310QI is -40°C to 85°C (TA).

What package type is the EN6310QI supplied in?

The EN6310QI is supplied in a 30-QFN (4x5) package.
