| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4,000 pcs
|
4000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
3,097 pcs
|
3097 pcs | On Request | 1 | On Request | On Request | 21+ | On Request | On Request | |
|
3 pcs
|
3 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Control Features | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Input Voltage Max | |
| Input Voltage Min | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Current | |
| Output Voltage | |
| Package / Case | |
| Supplier Device Package | |
| Switching Frequency | |
| Type | |
| Voltage | |
| Width |

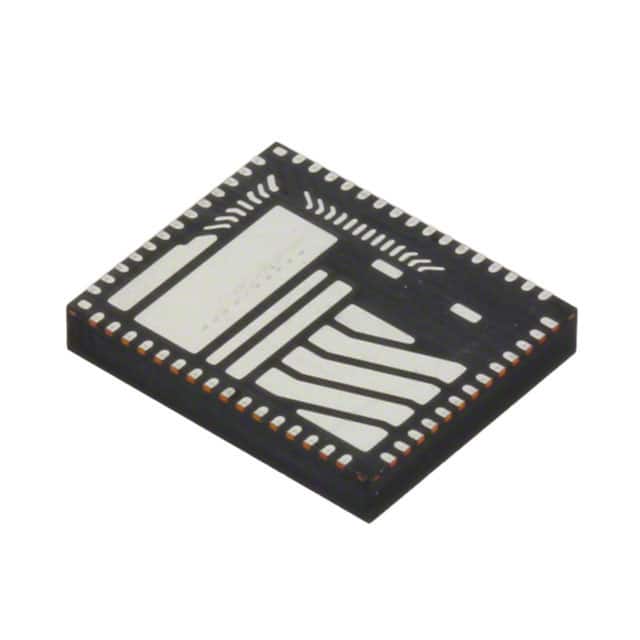

The Intel EN5396QI is a Power System on a Chip (PowerSoC) step-down DC-DC switching converter with an integrated inductor. It is designed for precise voltage regulation and fast transient response in high-performance, low-power applications such as processors, DSPs, FPGAs, ASICs, and memory boards.
Key electrical specifications include a wide input voltage range of 2.375V to 5.5V, an adjustable output voltage from 0.75V to 5.05V, and a continuous output current of 9A. The converter operates at a 5MHz switching frequency and achieves up to 93% efficiency. Protection features include remote on/off, over-current protection (OCP), over-temperature protection (OTP), over-voltage protection (OVP), short-circuit protection (SCP), and under-voltage lockout (UVLO).
The EN5396QI is offered in a 58-PowerQFN surface mount package measuring 12.0mm x 10.0mm x 1.9mm. It requires minimal external components, typically only small ceramic input and output capacitors and a soft-start capacitor. The device is RoHS compliant and compatible with lead-free manufacturing processes.
The output voltage is adjustable from 0.75V to 5.05V.
The maximum output current is 9A.
The input voltage range is 2.375V to 5.5V.
The operating temperature range is -40°C to 85°C.
It comes in a 58-PowerQFN surface mount package (58-QFN 12x10).
Yes, it is RoHS3 compliant.
It includes remote on/off, over-current protection (OCP), over-temperature protection (OTP), over-voltage protection (OVP), short-circuit protection (SCP), and under-voltage lockout (UVLO).
