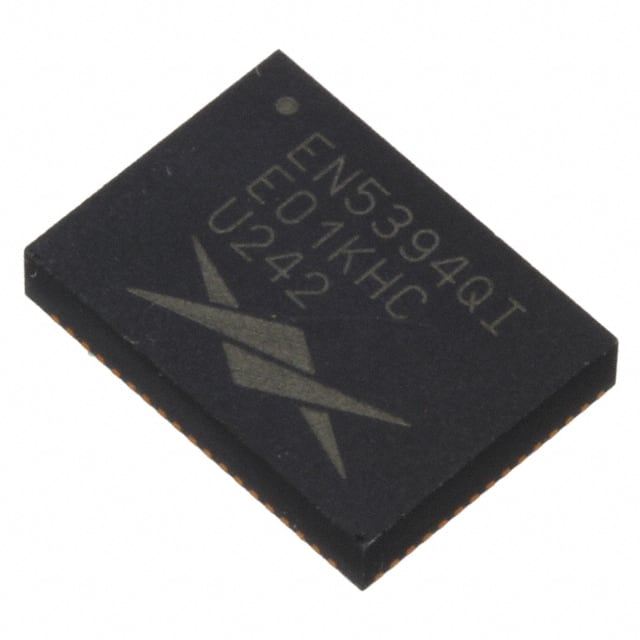

The Intel EN5394QI is a Non-Isolated Point-of-Load (PoL) DC DC Converter module from the Enpirion PowerSoC family. It delivers up to 9A continuous output current with an adjustable output voltage range of 0.6V to 5.88V. The module integrates the PWM controller, MOSFETs, and inductor in a compact 68-FQFN Exposed Pad package measuring 11mm x 8mm x 1.9mm.
Operating from a 2.375V to 6.6V input supply, the EN5394QI achieves up to 93% typical efficiency with a 4MHz switching frequency. It includes protection features such as Overcurrent Protection (OCP), Overtemperature Protection (OTP), Short-Circuit Protection (SCP), and Under-Voltage Lockout (UVLO). Control features include remote on/off and enable with active high logic.
This module is designed for commercial ITE applications and is RoHS3 compliant. It is surface mountable and suitable for space-constrained designs requiring high efficiency and reliable power conversion.
The EN5394QI provides a maximum output current of 9A.
The input voltage range is 2.375V to 6.6V.
The operating temperature range is -40°C to 85°C.
Yes, the EN5394QI is RoHS3 compliant as verified by the datasheet.
The EN5394QI is available in a 68-FQFN Exposed Pad, Module package (68-QFN 11x8mm).
It includes Overcurrent Protection (OCP), Overtemperature Protection (OTP), Short-Circuit Protection (SCP), and Under-Voltage Lockout (UVLO).
The typical efficiency is 93%.
