| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,500 pcs
|
3500 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1,794 pcs
|
1794 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
4 pcs
|
4 pcs | On Request | 1 | On Request | On Request | N/A | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Control Features | |
| Current | |
| Efficiency | |
| Efficiency (Typical) | |
| Features | |
| Height | |
| Input Voltage Range | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Operating Temperature Range | |
| Output Current (Maximum) | |
| Output Power (Maximum) | |
| Output Voltage Range | |
| Package / Case | |
| Supplier Device Package | |
| Switching Frequency | |
| Type | |
| Voltage | |
| Width |

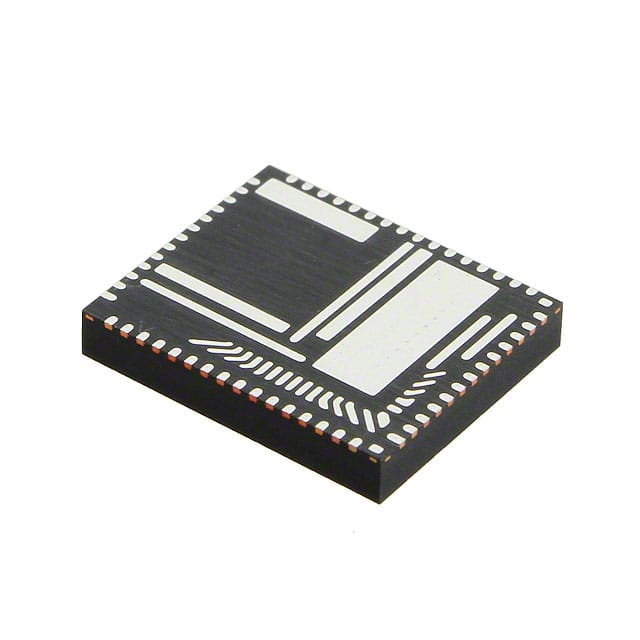

The Intel EN5365QI is a Power System on a Chip (PowerSoC) non-isolated point-of-load DC-DC converter module from the Enpirion family. It integrates the inductor, MOSFETs, and controller into a compact 58-PowerQFN surface-mount package measuring 12x10x1.9mm.
This module delivers up to 6A continuous output current and 20W output power with a typical efficiency of 93%. The input voltage range is 2.375V to 5.5V, and the output voltage is selectable from 0.75V to 3.3V using a 3-pin VID interface. It operates at a 5MHz switching frequency, enabling the use of only three small ceramic capacitors as external components.
Protection features include overcurrent protection (OCP), overtemperature protection (OTP), overvoltage protection (OVP), short-circuit protection (SCP), and undervoltage lockout (UVLO). The module offers remote on/off control via an active-high enable pin and supports programmable soft-start.
The device is designed for commercial ITE applications and is housed in a 58-QFN (12x10) package. It is RoHS3 compliant and compatible with lead-free manufacturing processes. The MSL rating is Level 3 (260°C reflow). This product is not recommended for new designs (NRND).
The maximum output current is 6A.
The input voltage range is 2.375V to 5.5V.
-40°C to 85°C.
Yes, the datasheet states RoHS3 compliance and lead-free manufacturing compatibility.
It is available in a 58-PowerQFN Module (58-QFN, 12x10mm).
Overcurrent (OCP), overtemperature (OTP), overvoltage (OVP), short-circuit (SCP), and undervoltage lockout (UVLO).
Typical efficiency is 93%.
