| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,581 pcs
|
2581 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
2,336 pcs
|
2336 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Control Features | |
| Current | |
| Current - Output (Max) | |
| Efficiency | |
| Features | |
| Height | |
| Integrated Inductor | |
| Length | |
| Master/Slave Capability | |
| Monotonic Start-Up | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage Margining | |
| Package / Case | |
| Power (Output) | |
| Size / Dimension | |
| Soft Shutdown | |
| Soft Start | |
| Supplier Device Package | |
| Switching Frequency | |
| Synchronization | |
| Type | |
| Voltage | |
| Voltage - Input (Max) | |
| Voltage - Input (Min) | |
| Voltage - Output (Max) | |
| Voltage - Output (Min) | |
| Width |

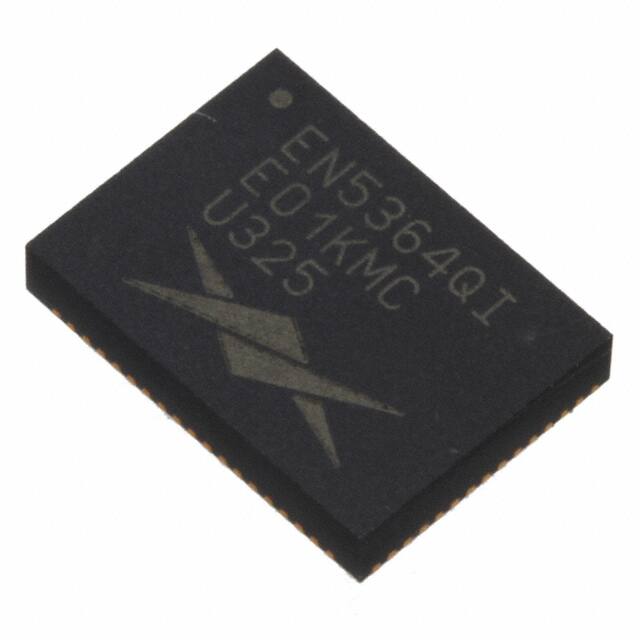

The EN5364QI is a Power Supply on a Chip (PowerSoC) non-isolated point-of-load (PoL) DC-DC converter manufactured by Intel. It integrates the inductor, PWM controller, MOSFETs, and compensation into a single 68-pin QFN module measuring 11.0mm x 8.0mm x 1.9mm (height 1.85mm per datasheet). This device supports a wide input voltage range from 2.375V to 6.6V and provides a regulated output voltage adjustable from 0.6V to 6.12V with a maximum output current of 6A. The converter operates at a high switching frequency of 4MHz, enabling the use of small external components and achieving efficiency up to 93%.
The EN5364QI includes a comprehensive set of features such as remote on/off control, overcurrent protection (OCP), overtemperature protection (OTP), short-circuit protection (SCP), and undervoltage lockout (UVLO). It also offers output voltage margining, programmable soft start, synchronization to an external clock, and master/slave capability for paralleling multiple units to increase output power. The output voltage ramp is monotonic during start-up, even with pre-biased loads, and the device supports a soft shutdown.
This converter is designed for commercial ITE (Information Technology Equipment) applications but is suitable for a wide range of high-performance systems including set-top boxes, LAN/SAN adapter cards, audio/video equipment, and embedded computing. The surface-mount package (68-FQFN with exposed pad) simplifies PCB layout and thermal management. The EN5364QI is RoHS3 compliant (per datasheet) and has a moisture sensitivity level of MSL 3 (260°C reflow).
The input voltage range is 2.375V to 6.6V.
0.6V to 6.12V.
6A.
93%.
It comes in a 68-FQFN Exposed Pad Module (68-QFN 11x8mm).
-40°C to 85°C.
Yes, it is RoHS3 compliant per the datasheet.
