| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,321 pcs
|
1321 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Control Features | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Input Voltage Range | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Current | |
| Output Voltage Range | |
| Package / Case | |
| Supplier Device Package | |
| Switching Frequency | |
| Type | |
| Voltage | |
| Width |

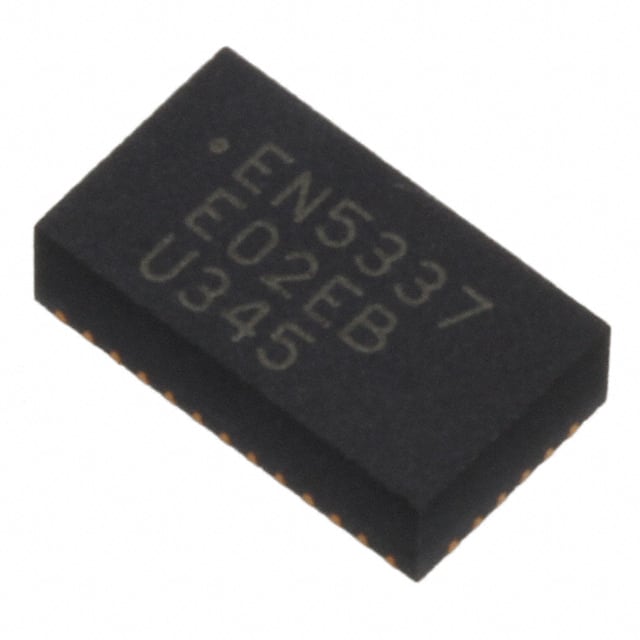

The EN5337QI is a Power Supply on a Chip (PowerSoC) DC-DC converter from Intel. It integrates MOSFET switches, control circuits, compensation, and the inductor in a compact 38-FQFN exposed pad package (7x4mm). This non-isolated point-of-load (PoL) module delivers up to 3A continuous output current with an output voltage range of 0.6V to 5V, from an input voltage of 2.375V to 5.5V.
Operating at a 5MHz switching frequency, the converter achieves high efficiency up to 92%. It includes features such as an output enable pin, power OK signal, programmable soft-start, and protections including under-voltage lockout, over-current, short-circuit, and thermal protection. The device is RoHS compliant and MSL level 3.
The EN5337QI is designed for low-power processors, DSPs, FPGAs, ASICs, and noise-sensitive applications. Its integrated inductor minimizes external components and simplifies board design. The surface-mount package is suitable for automated assembly.
The input voltage range is 2.375V to 5.5V.
The output voltage range is 0.6V to 5V.
The package is 38-FQFN Exposed Pad (38-QFN 7x4).
Yes, it is RoHS compliant.
The switching frequency is 5MHz.
Typical efficiency is 92%.
The output current is 3A continuous.
