| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,500 pcs
|
2500 pcs | On Request | 1 | On Request | On Request | 24+ | On Request | On Request | |
|
2,300 pcs
|
2300 pcs | On Request | 1 | On Request | On Request | 21+19+ | On Request | On Request | |
|
194 pcs
|
194 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Control Features | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Input Voltage Range | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Operating Temperature Range | |
| Output Current | |
| Output Voltage Range | |
| Package / Case | |
| Protection Features | |
| Supplier Device Package | |
| Switching Frequency | |
| Type | |
| Voltage | |
| Width | |
| junction_temperature_range |

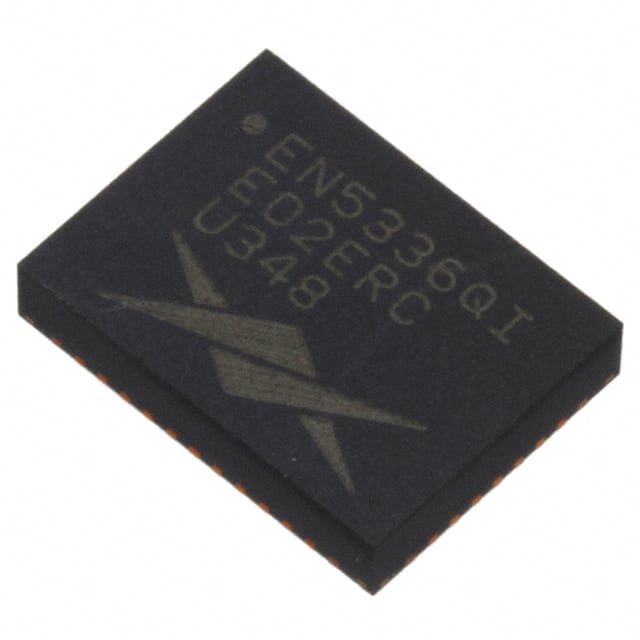

The Intel EN5336QI is a 3A non-isolated Point-of-Load (PoL) module designed for low-power processor, DSP, FPGA, and memory board applications. It delivers up to 10W continuous output power with an efficiency of 93%.
Key electrical characteristics include a wide input voltage range of 2.375V to 6.6V and an adjustable output from 0.75V to 6V. The device operates at a fixed 5MHz switching frequency, enabling a compact solution with only three external MLCC capacitors.
The converter is housed in a 44-PowerQFN module measuring 10.0mm x 7.5mm x 1.9mm and is designed for surface mount assembly. Protection features include over-current, over-temperature, over-voltage, short-circuit, and under-voltage lockout. Control features include an enable pin (active high) and remote on/off.
The input voltage range is 2.375V to 6.6V.
The output voltage is adjustable from 0.75V to 6V.
It is rated for 3A continuous output current.
The operating ambient temperature range is -40°C to 85°C.
It includes remote on/off, over-current (OCP), over-temperature (OTP), over-voltage (OVP), short-circuit (SCP), and under-voltage lockout (UVLO).
It is available in a 44-PowerQFN module, supplier device package 44-QFN (10x7.5mm).
Yes, it is RoHS3 compliant.
