| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4,500 pcs
|
4500 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1,149 pcs
|
1149 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
294 pcs
|
294 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Control Features | |
| Current | |
| Current - Output (Max) | |
| Efficiency | |
| Features | |
| Halogen Free | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Package / Case | |
| Power (Watts) | |
| Supplier Device Package | |
| Type | |
| Voltage | |
| Voltage - Input (Max) | |
| Voltage - Input (Min) | |
| Voltage - Output (Max) | |
| Voltage - Output (Min) | |
| Width |

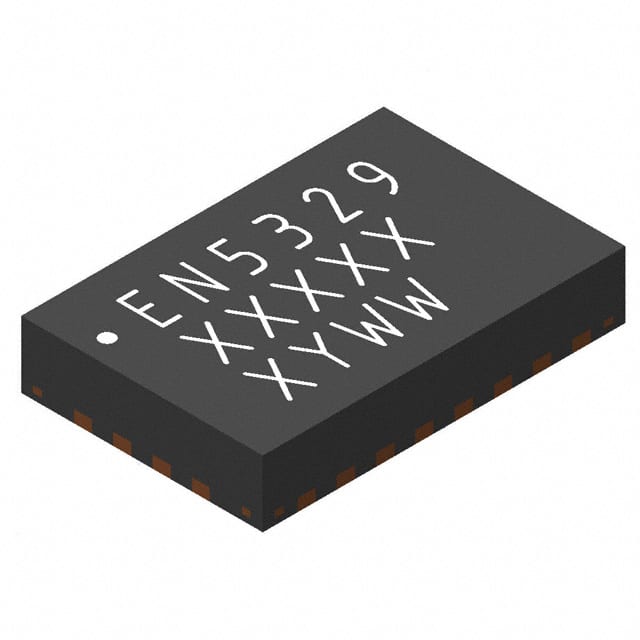

The Intel Enpirion EN5329QI is a Power System on a Chip (PowerSoC) step-down DC-DC switching converter that integrates an inductor, MOSFETs, a PWM voltage-mode controller, and internal compensation into a compact 24-PowerTQFN module measuring 6.0mm x 4.0mm x 1.1mm. This non-isolated point-of-load (PoL) module operates from an input voltage range of 2.4V to 5.5V and delivers a continuously adjustable output voltage from 0.6V to 4.9V at up to 2A of output current, with a typical efficiency of 95%.
The device includes comprehensive protection features such as overcurrent protection (OCP), overtemperature protection (OTP), short-circuit protection (SCP), and under-voltage lockout (UVLO). Control is provided via an enable input with active-high logic, and a remote on/off function is supported. The EN5329QI is designed for commercial ITE applications and is rated for an operating temperature range of -40°C to 85°C.
Packaged in a surface-mount 24-PowerTQFN module (supplier device package 24-QFN 6x4), the EN5329QI is part of the pin-compatible EN53x9QI family, allowing scalable current capability from 1.5A to 3A. The integrated inductor and high switching frequency enable a small solution footprint and excellent transient performance, making it suitable for space-constrained and noise-sensitive designs.
The input voltage range is 2.4V to 5.5V.
The output voltage is adjustable from 0.6V to 4.9V, and the maximum output current is 2A.
Typical efficiency is 95%.
It includes overcurrent protection (OCP), overtemperature protection (OTP), short-circuit protection (SCP), and under-voltage lockout (UVLO).
The operating temperature range is -40°C to 85°C.
It comes in a 24-PowerTQFN surface-mount module (supplier device package 24-QFN 6x4).
Yes, it is RoHS3 compliant, halogen free, and lead free.
