| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
45 pcs
|
45 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Cable Opening | |
| Color | |
| Connector Type | |
| Contact Finish | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Ingress Protection | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Orientation | |
| Primary Material | |
| Shell Material | |
| Shielding | |
| Termination | |
| Voltage Rating |

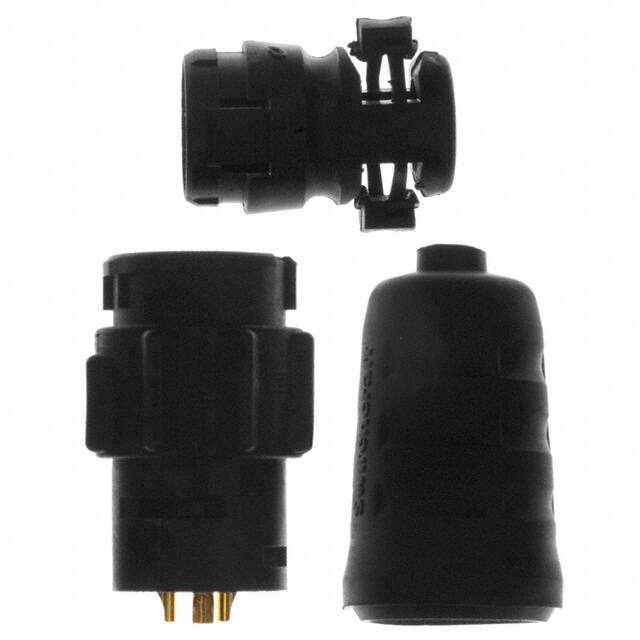

The EN3L3FX is a 3-position female circular connector receptacle manufactured by Conxall/Switchcraft. It features gold-plated contacts for reliable signal transmission and solder cup termination for easy field wiring. The connector is designed for free hanging (in-line) mounting and uses a bayonet lock mechanism for secure mating.
This connector is rated for 7.5A current and 250VAC/DC voltage, making it suitable for a variety of power and signal applications. It offers IP66/IP68 ingress protection, ensuring dust-tight and waterproof performance in harsh environments. The operating temperature range is -40°C to 65°C, and the shell is made of thermoplastic with UL94 V-0 flammability rating.
The connector includes a backshell and cable clamp for strain relief, accommodating cable diameters from 0.160" to 0.265" (4.06mm to 6.73mm). It is unshielded and comes in a black color. This part is RoHS3 and REACH compliant.
The EN3L3FX has 3 positions.
The current rating is 7.5A.
The voltage rating is 250VAC/DC.
Free hanging (in-line) mounting.
IP66/IP68 - dust tight, water resistant, waterproof.
-40°C to 65°C.
Thermoplastic shell with UL94 V-0 rating.
