| Category | |
| Manufacturer Name | |
| Cable Opening | |
| Color | |
| Connector Type | |
| Contact Finish | |
| Current Rating | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Ingress Protection | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Orientation | |
| Primary Material | |
| Shell Material | |
| Shielding | |
| Termination | |
| Voltage Rating |

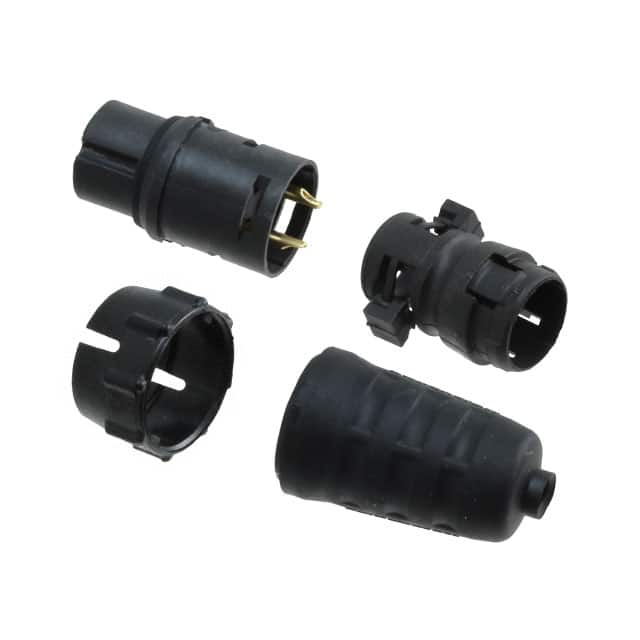

The EN3C2FX is a circular connector plug designed for in-line cable applications. It accommodates 2 female socket contacts with gold finish, ensuring reliable electrical connections. The connector uses a solder cup termination method and is free hanging (in-line) with a bayonet lock fastening system for secure mating. The shell is made of thermoplastic material with a black color and is unshielded. It features a backshell, cable clamp, and coupling nut. The cable opening range is 0.160" to 0.265" (4.06mm to 6.73mm).
Electrical ratings include 250 VAC/DC and 7.5 A current. The operating temperature range is -40°C to 65°C. It has a material flammability rating of UL94 V-0. The connector is rated IP66/IP68 for dust tight and waterproof protection, making it suitable for harsh environments. The primary material is plastic.
This connector is commonly used in industrial, marine, and outdoor applications requiring reliable sealing and durability. No packaging details are available.
It has 2 positions.
7.5 A.
250 VAC/DC.
Free Hanging (In-Line).
IP66/IP68.
Bayonet Lock.
-40°C to 65°C.
