| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,208 pcs
|
2208 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Control Features | |
| Current | |
| Efficiency | |
| Features | |
| Frequency Synchronization | |
| Halogen Free | |
| Height | |
| Input Voltage Range | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Current | |
| Output Voltage Accuracy | |
| Output Voltage Range | |
| Package / Case | |
| Parallel Operation | |
| Soft Start | |
| Solution Size | |
| Supplier Device Package | |
| Tape & Reel | |
| Type | |
| Voltage | |
| Voltage (Min) | |
| Width |

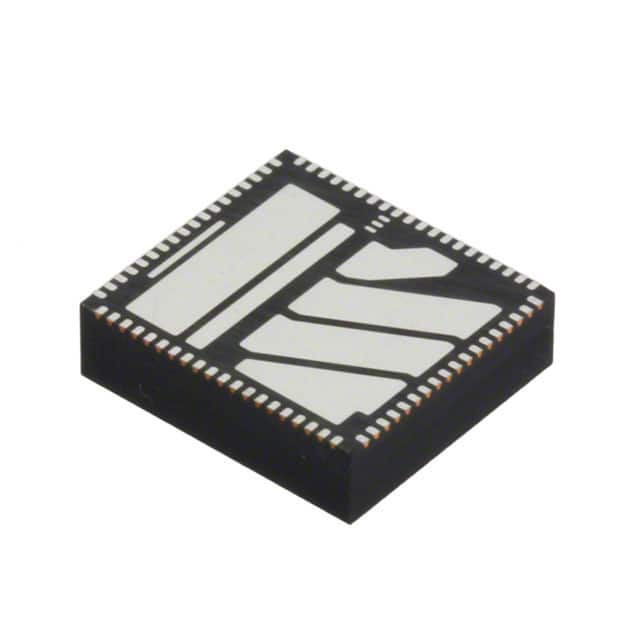

The EN2390QI is a Power System on a Chip (PowerSoC) DC-DC converter from Intel's Enpirion family. It integrates MOSFET switches, control circuits, compensation, and an inductor in a compact 11x10x3mm QFN module. This non-isolated point-of-load (PoL) module delivers up to 9A output current with an adjustable output voltage range of 0.75V to 3.3V. It operates from a wide input voltage range of 4.5V to 14V and achieves up to 89% efficiency.
The module includes advanced features such as remote on/off control, programmable soft-start, frequency synchronization to an external clock, and a power OK signal. Protection features include under-voltage lockout (UVLO), short-circuit protection (SCP), and thermal shutdown (OTP). The EN2390QI supports parallel operation of up to four devices for a total output current of 29A.
Designed for space-constrained applications, the EN2390QI is suitable for distributed power architectures and ITE (commercial) equipment. It is surface-mountable in a 76-PowerBFQFN package (76-QFN, 11x10mm). The module is RoHS3 compliant, halogen-free, and compatible with lead-free manufacturing processes. MSL level is 3 with a 260°C reflow profile.
4.5V to 14V.
0.75V to 3.3V.
9A.
-40°C to 85°C.
76-PowerBFQFN module, surface mount, 11x10mm.
Yes, RoHS3 compliant.
Remote on/off, OTP, SCP, UVLO.
