| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,068 pcs
|
3068 pcs | On Request | 1 | On Request | On Request | 21+ | On Request | On Request | |
|
2,580 pcs
|
2580 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Efficiency | |
| Frequency | |
| Function | |
| Halogen Free | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Operating Voltage | |
| Output Configuration | |
| Output Type | |
| SVHC Present | |
| Supplier Device Package | |
| Synchronous Rectifier | |
| Topology | |
| Voltage |

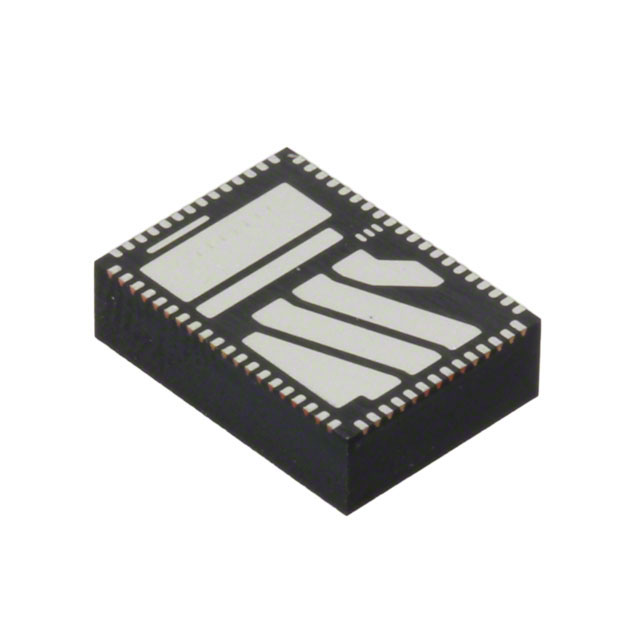

The Intel EN2342QI is a highly integrated Power System on a Chip (PowerSoC) DC-DC converter designed for high-performance applications. This step-down converter features integrated MOSFET switches, control circuitry, compensation, and an inductor within an 8x11x3mm QFN module, simplifying board design and layout.
It offers a wide input voltage range of 4.5V to 14V and can deliver a guaranteed 4A output current at 85°C without airflow. The EN2342QI boasts high efficiency up to 95%, excellent line and load regulation, and 1.5% VOUT accuracy over load and temperature variations. Key features include frequency synchronization to an external clock, power OK output voltage monitoring, programmable soft-start, and comprehensive protection against over-current, short-circuit, and thermal events.
Designed for space-constrained applications, the EN2342QI is suitable for FPGAs, embedded computing systems, servers, and telecommunications equipment. Its advanced circuit design and ultra-high switching frequency enable high-quality, non-isolated DC-DC conversion. The device is RoHS compliant, halogen-free, and compatible with lead-free manufacturing processes.
The converter is available in a 68-pin QFN package suitable for surface mounting. Its integrated nature improves system-level reliability by reducing the number of external components required.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.16 | $0.16 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The EN2342QI is guaranteed to provide 4A of output current at 85°C with no airflow.
The EN2342QI operates over a wide input voltage range from 4.5V to 14V.
The EN2342QI offers 1.5% output voltage accuracy over load and temperature.
The EN2342QI operates at a switching frequency of 1MHz.
The operating temperature range for the EN2342QI is -40°C to 85°C ambient, with a junction temperature rating of -40°C to +125°C.
The EN2342QI is available in a 68-QFN (8x11mm) package suitable for surface mounting.
Yes, the EN2342QI is RoHS3 compliant.
