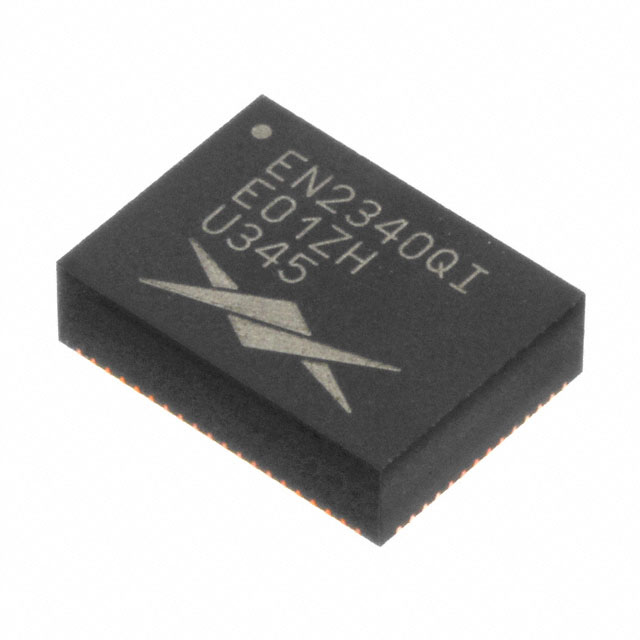

EN2340QI The Intel EN2340QI is a 4A non-isolated PoL DC-DC converter module with integrated inductor. It operates from 4.5V to 14V input and delivers 0.75V to 5V output at up to 95% efficiency.
Mfr Part #:

EN2340QI

Available from 1 distributors
Mfr Name: Intel
Intel
The Intel EN2340QI is a 4A non-isolated PoL DC-DC converter module with integrated inductor. It operates from 4.5V to 14V input and delivers 0.75V to 5V output at up to 95% efficiency.
✓ Total Stock: 2,446 pcs

EN2340QI Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Components Technology Group, Inc. ✓
Non-Authorised Inventory information
2,446 pcs
On Request
2446 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

EN2340QI Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Control Features
Current
Efficiency
Features
Halogen Free
Height
Length
Mounting Type
Number of Outputs
Operating Temperature
Output Current
Output Voltage
Package / Case
Supplier Device Package
Type
Voltage
Width
View Similar Products (0)

EN2340QI Description

Short technical summary and product information.

The Intel EN2340QI is a Power System on a Chip (PowerSoC) step-down DC-DC converter that integrates MOSFET switches, control circuits, compensation, and an inductor into a compact 8x11x3mm QFN module. It delivers up to 4A output current with high efficiency up to 95%.



This converter operates over a wide input voltage range of 4.5V to 14V and provides an adjustable output voltage from 0.75V to 5V. It features remote on/off control, overcurrent protection, overtemperature protection, short-circuit protection, and undervoltage lockout. The device also includes a power OK output and programmable soft-start.



The EN2340QI is designed for space-constrained applications and distributed power architectures. It is surface mountable in a 68-BFQFN exposed pad package (68-QFN 11x8mm) and operates over a temperature range of -40°C to 85°C. The module is RoHS compliant and halogen free.

EN2340QI Quick Information

Product Type: DC-DC Converter Module
Series: EN2340QI
Canonical Name: Intel EN2340QI 4A Non-Isolated PoL Module DC-DC Converter
Subcategory: Step-Down DC-DC Converter

EN2340QI Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

EN2340QI Features

  • Integrated inductor, MOSFETs, and controller.
  • Wide input voltage range 4.5V to 14V.
  • Guaranteed 4A output at 85°C with no airflow.
  • High efficiency up to 95%.
  • RoHS compliant and halogen free.

EN2340QI Applications

  • Ideal for space-constrained power designs.
  • Used in distributed power architectures.
  • Suitable for output voltage ripple sensitive applications.

EN2340QI FAQs

7 frequently asked questions generated from this part’s specifications.
What is the output current rating of the EN2340QI?

The EN2340QI is rated for 4A continuous output current.

What is the input voltage range for the EN2340QI?

The input voltage range is 4.5V to 14V.

What output voltage can the EN2340QI provide?

The output voltage is adjustable from 0.75V to 5V.

What is the efficiency of the EN2340QI?

The efficiency is up to 95%.

What package does the EN2340QI come in?

It comes in a 68-BFQFN exposed pad module, supplier package 68-QFN (11x8mm).

What is the operating temperature range of the EN2340QI?

The operating temperature range is -40°C to 85°C.

Is the EN2340QI RoHS compliant?

Yes, the EN2340QI is RoHS3 compliant and halogen free.
