EMVE6R3ADA102MJA0G The United Chemi-Con EMVE6R3ADA102MJA0G is an aluminum electrolytic capacitor with a capacitance of 1000 µF and a voltage rating of 6.3V. It operates within a temperature range of -40°C to 105°C.
Mfr Part #:

EMVE6R3ADA102MJA0G

Available from 1 distributors
Mfr Name: United Chemi-Con
United Chemi-Con
The United Chemi-Con EMVE6R3ADA102MJA0G is an aluminum electrolytic capacitor with a capacitance of 1000 µF and a voltage rating of 6.3V. It operates within a temperature range of -40°C to 105°C.
✓ Total Stock: 190 pcs
$ Price Range: $1.20

EMVE6R3ADA102MJA0G Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
190 pcs
On Request
190 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

EMVE6R3ADA102MJA0G Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Capacitance
Diameter
Mounting Type
Operating Temperature
Operating Voltage
SVHC Present
Tolerance
View Similar Products (0)

EMVE6R3ADA102MJA0G Description

Short technical summary and product information.

This United Chemi-Con EMVE6R3ADA102MJA0G is an aluminum electrolytic capacitor from the Alchip™- MVE series. It features a capacitance of 1000 µF with a tolerance of ±20% and a rated voltage of 6.3V.



The capacitor is designed for general purpose applications and is suitable for surface mount configurations. It has an operating temperature range of -40°C to 105°C and a typical lifetime of 2000 hours at 105°C. The ripple current handling capability is 410 mA at 120 Hz.

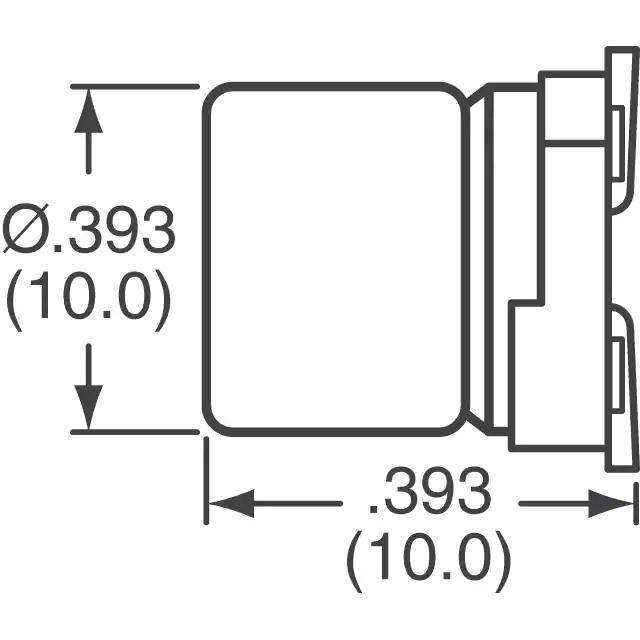

Packaged in tape and reel, this component has a seated height of 10.00mm and a diameter of 10.00mm. The land size for surface mounting is typically 10.30mm x 10.30mm. The moisture sensitivity level is rated at 1 (unlimited).



Compliance information indicates RoHS3 compliance and REACH unaffected status. The HTSUS code is 8532.22.0020 and the ECCN is EAR99.

EMVE6R3ADA102MJA0G Quick Information

Product Type: Aluminum Electrolytic Capacitor
Series: MVE
Canonical Name: United Chemi-Con EMVE6R3ADA102MJA0G Aluminum Electrolytic Capacitor
Subcategory: Aluminum Electrolytic Capacitors

EMVE6R3ADA102MJA0G Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

EMVE6R3ADA102MJA0G Estimated Pricing

Qty Low High
1+ $1.20 $1.20

Estimated market price range - modelled values for guidance only, not live distributor offers.

EMVE6R3ADA102MJA0G Features

  • 1000 µF capacitance, ±20% tolerance.
  • Rated for 6.3V DC operation.
  • Wide -40°C to 105°C operating temperature.
  • Surface mount, tape and reel package.
  • 2000 hours typical lifetime at 105°C.

EMVE6R3ADA102MJA0G Applications

  • Power supply input/output filtering.
  • DC-DC converter smoothing.
  • General purpose energy storage.
  • Decoupling in low voltage circuits.

EMVE6R3ADA102MJA0G FAQs

7 frequently asked questions generated from this part’s specifications.
What is the capacitance of the EMVE6R3ADA102MJA0G?

1000 µF.

What is the rated voltage?

6.3 V.

What is the operating temperature range?

-40°C to 105°C.

What is the package type?

Radial, Can - SMD.

What is the tolerance?

±20%.

What is the ripple current rating?

410 mA at 120 Hz.

What is the lifetime?

2000 hours at 105°C.
