| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Automotive Grade | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Industrial Grade | |
| Input Type | |
| Insulation Resistance | |
| Length | |
| Medical Grade | |
| Military Grade | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Storage Temperature | |
| Tape & Reel | |
| Voltage | |
| Width |

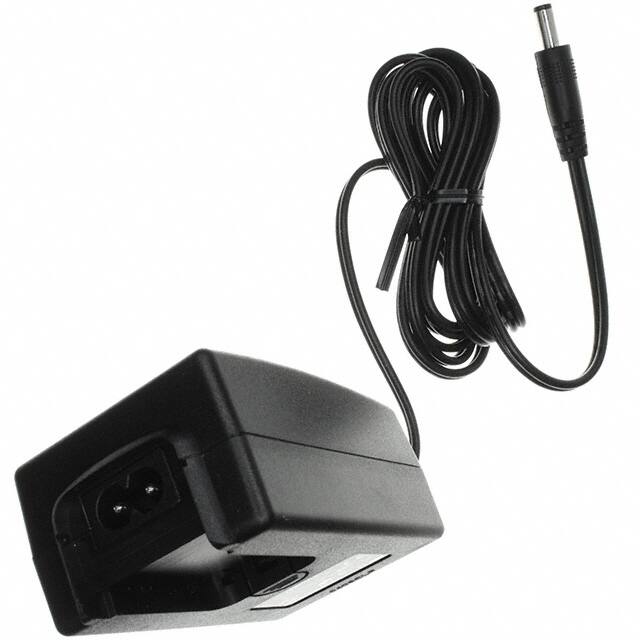

The CUI Inc. EMT240125-P5P-KH is a versatile AC/DC power supply base unit designed for desktop or wall mounting applications. It operates with a wide input voltage range of 90-264V AC and a frequency range of 47-63 Hz, making it suitable for international use.
This power adapter delivers a stable 24V DC output at 1.25A, providing up to 30W of power. It features a maximum line regulation of 2% and load regulation of ±5%, ensuring consistent power delivery. The unit includes auto-recovery for over-current and short-circuit protection.
Designed for efficiency, it meets Energy Star / CEC Level IV standards and has a low no-load power consumption of 0.5W max. The operating temperature range is 0°C to 40°C, and it comes with a 72-inch cord and a positive center barrel plug (2.1mm I.D. x 5.5mm O.D.).
Safety and EMI standards are met, including UL60950-1, IEC60950-1, EN60950-1, and FCC Part 15 Class B. The unit is RoHS3 compliant and has an MSL of 1.
The EMT240125-P5P-KH power adapter provides an output voltage of 24V DC at a current of 1.25A.
The maximum power output for the EMT240125-P5P-KH is 30W.
The EMT240125-P5P-KH supports an input voltage range of 90V to 264V AC.
Yes, the efficiency of the EMT240125-P5P-KH meets Energy Star / CEC Level IV.
The operating temperature range for the EMT240125-P5P-KH is 0°C to 40°C.
