| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Input Type | |
| Input Voltage | |
| Insulation Resistance | |
| Mounting Type | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Output Voltage | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Storage Temperature | |
| Voltage |

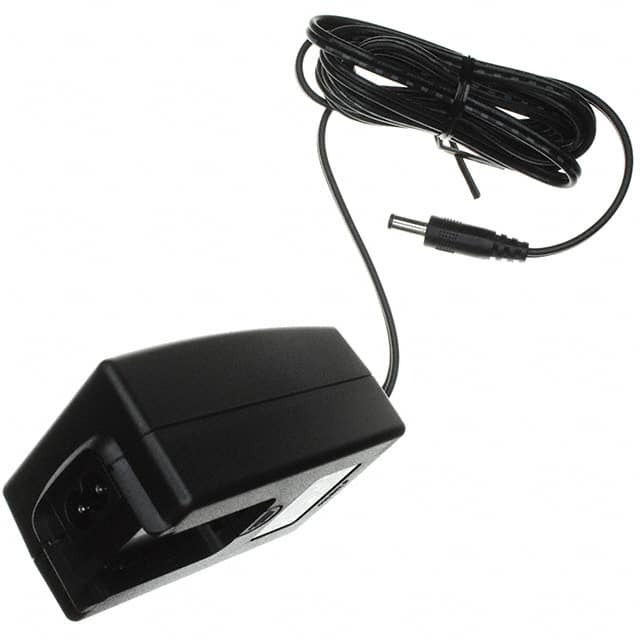

The CUI Inc. EMT120250-P5P-KH is a versatile AC/DC switching power supply base unit designed for use with interchangeable input blades or an AC power cord. It provides a stable 12V DC output at a maximum current of 2.5A, delivering up to 30W of power.
This adapter features a wide input voltage range of 90V to 264V AC, making it suitable for international applications. It meets Energy Star and CEC Level IV efficiency standards, ensuring reduced energy consumption. Key electrical specifications include a line regulation of 2% maximum and a load regulation of ±5%. The unit also incorporates auto-recovery for over-current and short-circuit protection.
Designed for desktop or wall mounting (Class II), the EMT120250-P5P-KH has a compact form factor with dimensions of 89.0mm x 56.0mm x 41.0mm. It utilizes a standard barrel plug connector (2.1mm I.D. x 5.5mm O.D. x 12.0mm) with a positive center polarization. The operating temperature range is 0°C to 40°C, and it has a Mean Time Before Failure (MTBF) of 50,000 hours at 25°C.
Safety and EMI standards are met, including UL60950-1, IEC60950-1, EN60950-1, and FCC Part 15 Class B. The unit is RoHS3 compliant and has an MSL rating of 1.
The adapter provides a 12V DC output at a maximum current of 2.5A.
The input voltage range is 90V to 264V AC.
The adapter has a power rating of 30W.
The operating temperature range is 0°C to 40°C.
Yes, its efficiency meets Energy Star / CEC Level IV.
It uses a Barrel Plug with dimensions of 2.1mm I.D. x 5.5mm O.D. x 12.0mm.
Yes, it is RoHS3 Compliant.
