| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Applications | |
| Approval Agency | |
| Automotive Grade | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Industrial Grade | |
| Input Connector | |
| Input Type | |
| Length | |
| Medical Grade | |
| Military Grade | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Voltage | |
| Width |

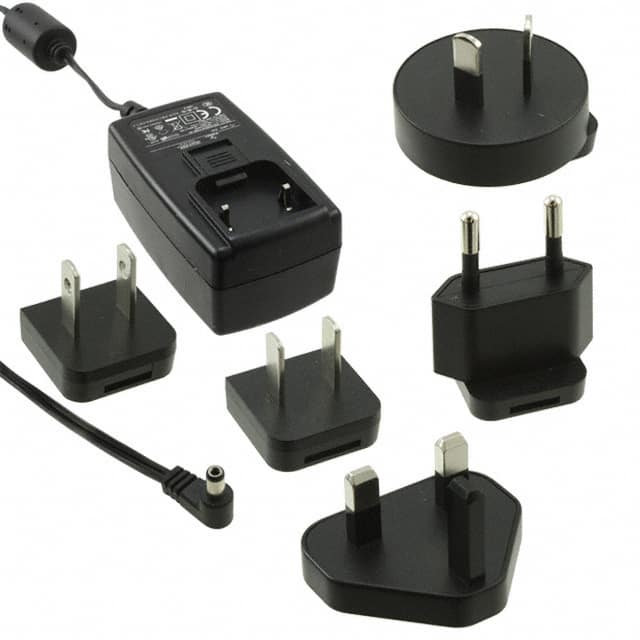

The CUI Inc. EMSA240167-P5RP-SZ is a versatile AC/DC wall mount adapter designed for ITE (Commercial) applications. It delivers a stable 24V output with a maximum current of 1.67A, totaling 40W of power. This adapter meets Level V efficiency standards, minimizing energy consumption.
Its compact dimensions of 74.0mm x 43.5mm x 35.3mm make it suitable for space-constrained environments. The adapter features a multi-blade input connector and a standard barrel plug output connector (2.1mm I.D. x 5.5mm O.D. x 9.5mm) with positive center polarization. The included cord measures 1.53m.
Operating within a temperature range of 0°C to 40°C, the EMSA240167-P5RP-SZ is designed for international use. It also boasts a low no-load power consumption of 300mW (Max).
The output voltage is 24V.
The maximum output current is 1.67A.
The power rating is 40W.
It has a Level V efficiency rating.
The operating temperature range is 0°C to 40°C.
The dimensions are 74.0mm x 43.5mm x 35.3mm.
It uses a Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 9.5mm.
