| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Form Factor | |
| Frequency | |
| Height | |
| Input Connector | |
| Input Type | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Storage Temperature | |
| Voltage | |
| Width |

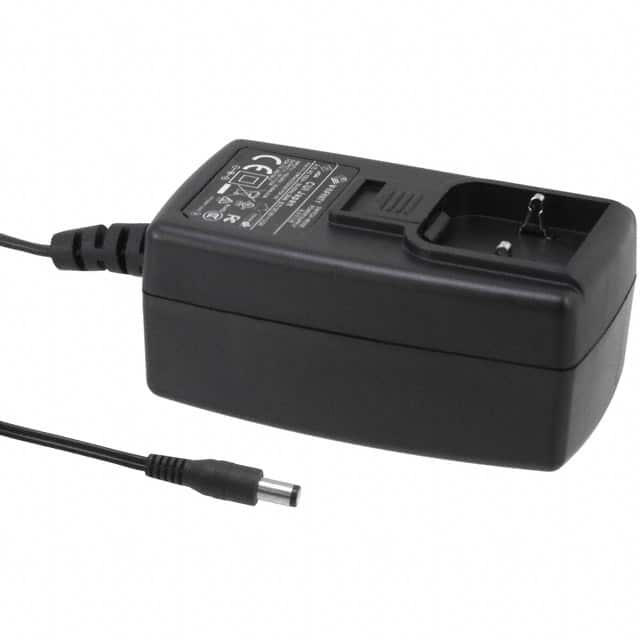

The CUI Inc. EMSA240125K-P5P-SZ is a 30W AC-DC power supply designed for wall-mount applications. It provides a single regulated output of 24V at 1.25A.
This power supply features a universal input voltage range of 90-264 Vac and operates at a frequency of 47-63 Hz. It meets Level V efficiency standards and includes short circuit protection. The unit is designed for ITE (Commercial) applications and carries multiple safety approvals including CCC, CE, cULus, GS, and PSE.
With dimensions of 74.0mm x 43.5mm x 35.3mm, it is housed in a Wall Mount (Class II) form factor. The output connector is a standard 2.1mm I.D. x 5.5mm O.D. barrel plug. The input is a multi-blade type, sold separately, allowing for international use. The cord length is approximately 1.53 meters (60.2 inches) with a positive center polarization.
The output voltage is 24V.
The maximum output current is 1.25A.
The maximum power output is 30W.
The input voltage range is 90-264 Vac.
The efficiency level is Level V.
The dimensions are 74.0mm x 43.5mm x 35.3mm.
It has a Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm connector.
