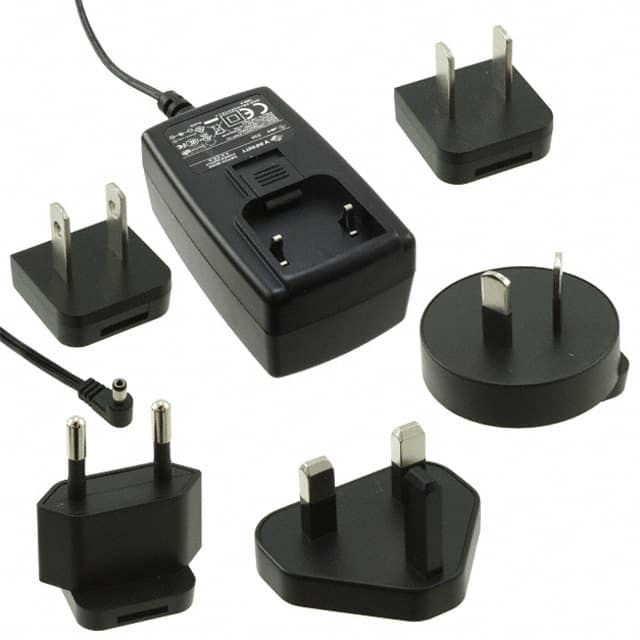

The CUI Inc. EMSA240075-P5RP-SZ is an AC/DC wall mount adapter with a 24V output voltage and a maximum current of 750mA, providing 18W of power. It is designed for ITE (Commercial) applications and features a "Level V" efficiency rating, indicating good energy performance.
This adapter utilizes a positive center polarization and comes with a multi-blade input connector, suitable for international region utilization. The output connector is a Barrel Plug R/A with dimensions of 2.1mm I.D. x 5.5mm O.D. x 9.5mm. The device operates within a temperature range of 0°C to 40°C and has a no-load power consumption of a maximum of 300mW.
The physical dimensions of the adapter are 74.0mm in length, 43.5mm in width, and 35.3mm in height. The included cord length is 60.2 inches (1.53m). The adapter is classified as Wall Mount (Class II) and has received various approval agency certifications including CCC, CE, cULus, GS, and PSE.
The output voltage is 24V.
The maximum output current is 750mA.
The power rating is 18W.
The operating temperature range is 0°C to 40°C.
It uses a Barrel Plug R/A with dimensions of 2.1mm I.D. x 5.5mm O.D. x 9.5mm.
The dimensions are 74.0mm x 43.5mm x 35.3mm.
The status is RoHS3 Compliant.
