| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Industrial Grade | |
| Input Connector | |
| Input Type | |
| Length | |
| Mounting Type | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Package / Case | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Voltage | |
| Width |

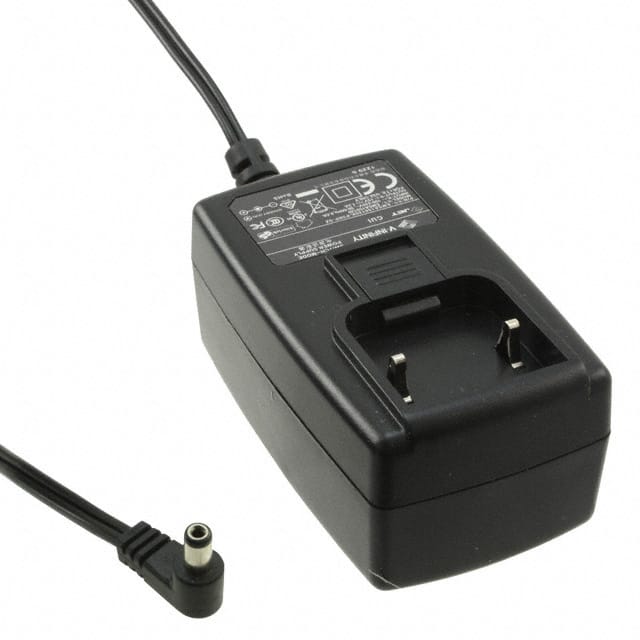

The CUI Inc. EMSA150120K-P5RP-SZ is an AC/DC wall mount adapter designed for ITE (Commercial) applications. It delivers a stable 15V output with a maximum current of 1.2A, providing a total power of 18W. This adapter meets Level V efficiency standards, ensuring energy conservation.
The unit features a compact wall mount form factor (Class II) with dimensions of 74.0mm x 43.5mm x 35.3mm. The input connector is multi-blade, and the output connector is a Barrel Plug R/A measuring 2.1mm I.D. x 5.5mm O.D. x 9.5mm. It operates within a temperature range of 0°C to 40°C and has a cord length of 60.2 inches (1.53m). The polarization is set to Positive Center. It is compliant with RoHS3 standards and has an MSL rating of 1 Unlimited.
The output voltage is 15V.
The maximum output current is 1.2A.
The power rating is 18W.
The operating temperature range is 0°C to 40°C.
It has a Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 9.5mm output connector.
The RoHS status is RoHS3 Compliant.
The MSL is 1 Unlimited.
