| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Frequency | |
| Height | |
| Input Connector | |
| Input Type | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| SVHC Present | |
| Storage Temperature | |
| Voltage | |
| Width |

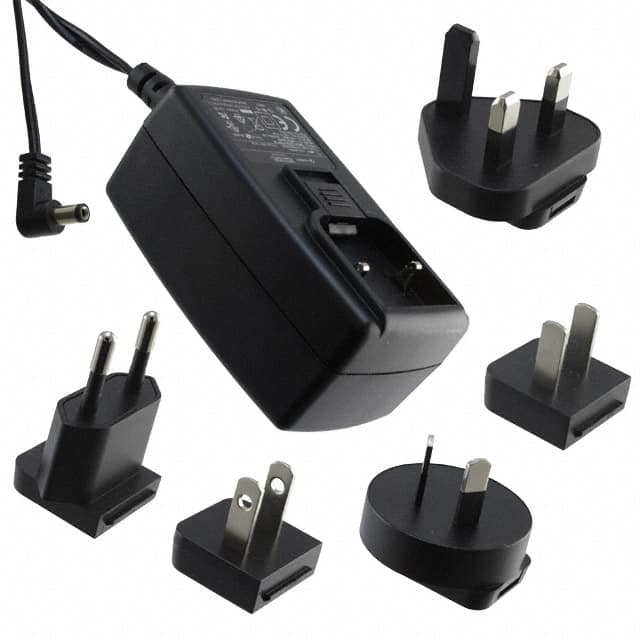

The CUI Inc. EMSA120250-P5RP-SZ is a versatile 30W AC-DC power supply designed for wall-mount applications. It provides a single regulated output of 12V at up to 2.5A.
This power supply operates with a universal input voltage range of 90-264 Vac and features Level V efficiency, minimizing energy consumption. Key electrical specifications include line regulation of ±1% and load regulation of ±5%. It also incorporates short circuit protection for enhanced safety.
The unit is housed in a compact wall-mount (Class II) form factor with dimensions of 74 x 43.5 x 35.3 mm. It includes a multi-blade input connector for international compatibility and a standard barrel plug output connector (2.1mm I.D. x 5.5mm O.D.). The cord length is 1.53 meters (60.2 inches).
Safety approvals include CCC, CE, cULus, GS, and PSE, making it suitable for ITE (Commercial) applications. The operating temperature range is 0°C to 40°C.
The output is 12Vdc at up to 2.5A, with a maximum power of 30W.
It accepts a universal input of 90-264Vac at 47-63Hz.
The operating temperature range is 0°C to 40°C.
It is approved to CCC, CE, cULus, GS, and PSE standards.
It uses a right-angle barrel plug with 2.1mm I.D. x 5.5mm O.D. x 9.5mm dimensions, positive center polarity.
The adapter meets Level V efficiency standards.
