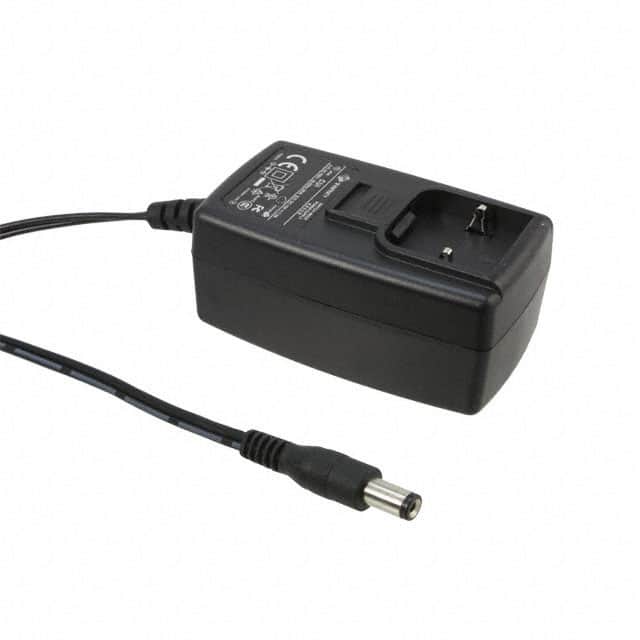

The CUI Inc. EMSA090200K-P5P-SZ is an 18W AC/DC external wall mount adapter, classified as Class II. It provides a stable 9V output with a maximum current of 2A, achieving Level V efficiency.
Designed for ITE (Commercial) applications, this adapter operates within a universal input voltage range of 90 to 264 VAC. It features a positive center barrel plug output connector (2.1mm I.D. x 5.5mm O.D. x 9.5mm) and requires a multi-blade input connector, sold separately.
The adapter has a compact form factor with dimensions of 74.0mm x 43.5mm x 35.3mm. It operates within a temperature range of 0°C to 40°C and has a low no-load power consumption of 300mW maximum. The cord length is 1.53 meters.
The EMSA090200K-P5P-SZ adapter has an output voltage of 9V and a maximum output current of 2A.
The power rating for the EMSA090200K-P5P-SZ adapter is 18W.
The adapter accepts an input voltage range of 90 to 264 VAC.
This adapter meets Level V efficiency.
The dimensions are 74.0mm in length, 43.5mm in width, and 35.3mm in height.
The operating temperature range is from 0°C to 40°C.
It uses a Barrel Plug connector with dimensions 2.1mm I.D. x 5.5mm O.D. x 9.5mm.
