| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Voltage | |
| Width |

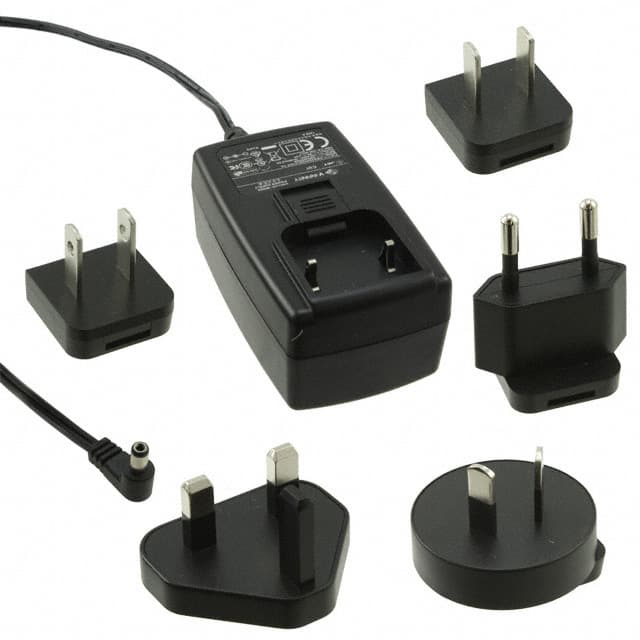

The CUI Inc. EMSA090200-P5RP-SZ is an AC/DC wall mount adapter with a 9V output voltage and a maximum output current of 2A, delivering a total power of 18W. This adapter meets Level V efficiency standards and is suitable for ITE (Commercial) applications.
It features a compact design with dimensions of 74.0mm x 43.5mm x 35.3mm and a wall mount form factor (Class II). The input connector is multi-blade, and the output connector is a right-angle barrel plug with 2.1mm inner diameter and 5.5mm outer diameter. The adapter operates within a temperature range of 0°C to 40°C and has a low no-load power consumption of 300mW maximum.
This adapter is designed for international use and includes multi-blades for input. It has received various approval agency certifications, including CCC, CE, cULus, GS, and PSE, ensuring compliance with safety and performance standards.
9V DC.
0°C to 40°C.
Wall mount (Class II).
Level V.
Barrel plug, right-angle, 2.1mm ID x 5.5mm OD x 9.5mm.
Multi-blade (included).
CCC, CE, cULus, GS, PSE.
