EMSA090067-P5RP-SZ The CUI Inc. EMSA090067-P5RP-SZ is a 6W AC-DC power supply with a 9V output. It features universal input and Level V efficiency.
Mfr Part #:

EMSA090067-P5RP-SZ

Mfr Name: CUI Inc.
CUI Inc.
The CUI Inc. EMSA090067-P5RP-SZ is a 6W AC-DC power supply with a 9V output. It features universal input and Level V efficiency.
Stock on Request

EMSA090067-P5RP-SZ Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Approval Agency
Cord Length
Current
Efficiency
Form
Frequency
Height
Input Connector
Input Type
Length
No Load Power Consumption
Operating Temperature
Output Connector
Polarization
Power (Watts)
Region Utilized
Storage Temperature
Voltage
Width
View Similar Products (0)

EMSA090067-P5RP-SZ Description

Short technical summary and product information.

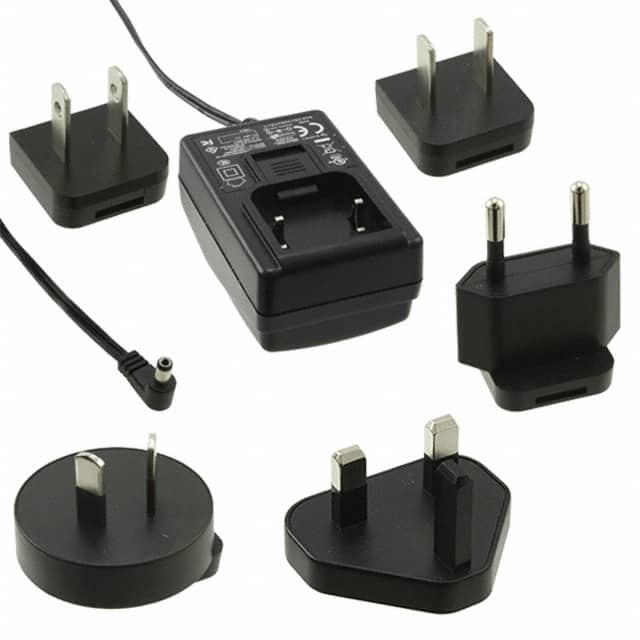

The CUI Inc. EMSA090067-P5RP-SZ is an AC-DC power supply designed for ITE (Commercial) applications. It delivers a single regulated 9V output with a maximum current of 670mA, providing up to 6W of power.



This power supply features a universal input voltage range of 90-264 Vac and operates at a frequency of 47-63 Hz. It meets Level V efficiency standards and includes over-voltage and short-circuit protections for reliable operation. The unit is designed for wall mounting and comes with interchangeable multi-blades for international use.



Key electrical specifications include line regulation of ±3% and load regulation of ±5%. The operating temperature range is 0°C to 40°C. The output is delivered via a 2.1mm I.D. x 5.5mm O.D. barrel plug with a positive center polarization and a cord length of 1.53 meters.

EMSA090067-P5RP-SZ Quick Information

Product Type: AC-DC Power Supply
Series: EMSA 6W
Canonical Name: CUI Inc. EMSA090067-P5RP-SZ AC-DC Power Supply
Subcategory: Wall Mount

EMSA090067-P5RP-SZ Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

EMSA090067-P5RP-SZ Features

  • 6W maximum output power.
  • 9Vdc single regulated output.
  • Universal input voltage range.
  • Level V efficiency rating.
  • Over-voltage and short-circuit protection.

EMSA090067-P5RP-SZ Applications

  • For commercial ITE equipment powering.
  • Powers networking peripherals and hubs.
  • Ideal for point-of-sale terminals.
  • Used in security and surveillance devices.

EMSA090067-P5RP-SZ FAQs

7 frequently asked questions generated from this part’s specifications.
What is the input voltage range?

90-264 Vac.

What is the output voltage and current?

9 Vdc at 670 mA.

What is the operating temperature range?

0°C to 40°C.

What is the package or form factor?

Wall mount (Class II) with multi-blade input connector.

What type of output connector does it have?

Barrel plug, right-angle, 2.1mm I.D. x 5.5mm O.D. x 9.5mm, positive center.

What protection features are included?

Over voltage protection via primary circuit IC and short circuit protection with output shutdown and auto restart.

What is the isolation voltage?

3000 Vac (4242 Vdc) input to output.
