| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Frequency | |
| Height | |
| Input Connector | |
| Input Type | |
| Length | |
| Mounting Type | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Storage Temperature | |
| Voltage | |
| Width |

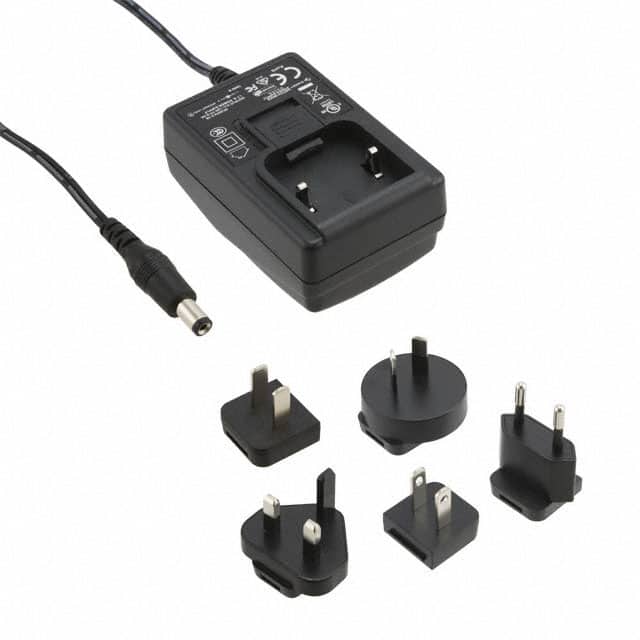

The EMSA090067-P5P-SZ is a wall mount AC/DC adapter from CUI Inc. It delivers a nominal output of 9 Vdc at up to 0.67 A, providing 6 W of output power. The adapter accepts a universal input voltage of 90 to 264 Vac at 47 to 63 Hz, with a typical input current of 0.3 A RMS.
Electrical performance includes a maximum ripple and noise of 150 mVp-p, line regulation of ±3%, and load regulation of ±5%. The adapter provides 3000 Vac isolation between input and output, with an isolation resistance of 100 MΩ. Maximum leakage current is 0.25 mA for the 9V output and 0.1 mA for other outputs.
The adapter operates over a temperature range of 0°C to 40°C and can be stored between -10°C and 70°C. Operating humidity range is 20% to 80%, and storage humidity range is 10% to 90%. It is designed for wall mount installation and is Class II rated.
Mechanical dimensions are 64.0mm (2.52") in length, 40.5mm (1.59") in width, and 30.0mm (1.18") in height. The cord length is 60.2" (1.53m). The adapter meets Level V efficiency requirements.
The input voltage range is 90 to 264 Vac.
The output voltage is 9 Vdc and the maximum output current is 0.67 A.
The operating temperature range is 0°C to 40°C.
The isolation voltage is 3000 Vac between input and output.
The maximum ripple and noise is 150 mVp-p.
