| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Package / Case | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Voltage | |
| Width |

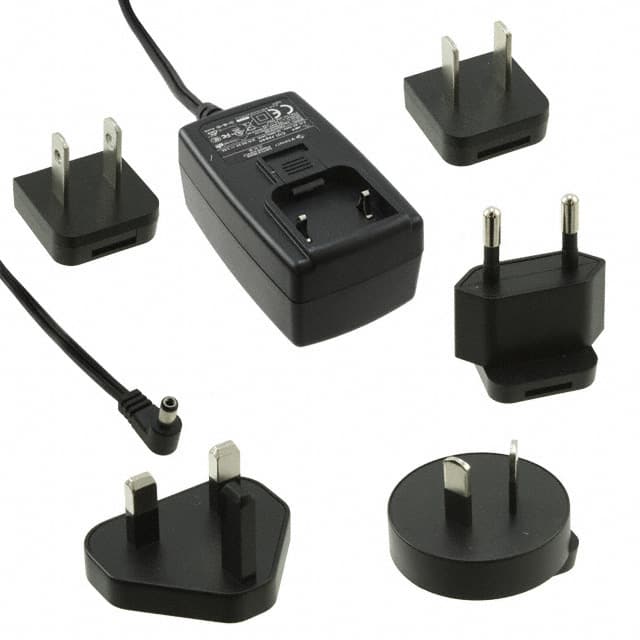

The CUI Inc. EMSA050300-P5RP-SZ is an AC/DC wall mount adapter designed for ITE (Commercial) applications. It delivers a stable 5V output with a maximum current of 3A, providing a total power of 15W. This adapter meets Level V efficiency standards, ensuring energy conservation.
Featuring a compact wall mount form factor (Class II), it is suitable for international use with its multi-blade input connector and included international plug set. The output is delivered via a 2.1mm I.D. x 5.5mm O.D. barrel plug with a right-angle orientation and a cord length of 60.2 inches (1.53m). The polarization is positive center.
The operating temperature range for this unit is 0°C to 40°C. It also has a low no-load power consumption of 300mW (Max). The dimensions are 74.0mm x 43.5mm x 35.3mm.
5V DC
3A
15W
0°C to 40°C
Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 9.5mm, center positive
Level V
300mW maximum
