| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Frequency | |
| Height | |
| Input Connector | |
| Input Type | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Package / Case | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Storage Temperature | |
| Tape & Reel | |
| Voltage | |
| Width |
The CUI Inc. EMSA050120-P5RP-SZ is a versatile AC-DC power supply designed for various applications. It delivers a stable 5V output at up to 6W of power, making it suitable for ITE (Commercial) applications.

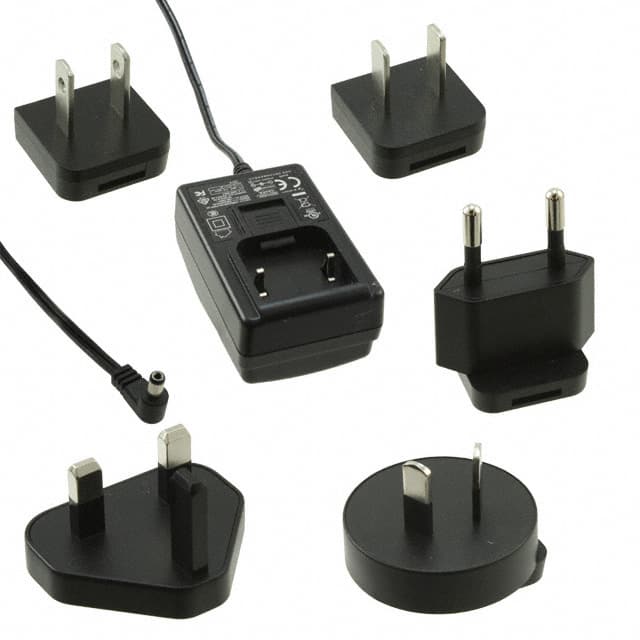

This power supply boasts a universal input voltage range of 90-264 Vac and operates with Level V efficiency. It includes essential protections such as over-voltage and short-circuit protection. The unit is designed as a wall mount adapter with interchangeable AC blades, offering flexibility for international use.
Key electrical specifications include a line regulation of ±3% and a load regulation of ±5%. The operating temperature range is from 0°C to 40°C. The dimensions are 64.0mm x 40.5mm x 30.0mm, and it comes with a cord length of 60.2 inches (1.53m).
Safety and compliance are met with approvals including CCC, CE, cULus, GS, and PSE. The unit is RoHS3 compliant and has an MSL of 1.
The EMSA050120-P5RP-SZ provides a 5Vdc output at a maximum current of 1.2A.
This AC-DC adapter has a maximum power output of 6W.
The input voltage range for this power supply is 90-264 Vac.
The operating temperature range is 0°C to 40°C.
Yes, the EMSA050120-P5RP-SZ is RoHS3 compliant.
