| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Failure Rate | |
| Form | |
| Input Connector | |
| Input Type | |
| Input Voltage | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Output Voltage | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Voltage |

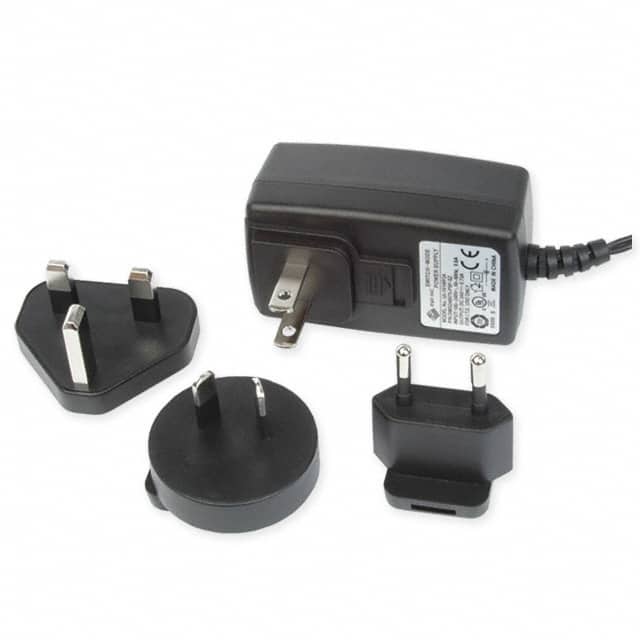

The CUI Inc. EMS150120-P5P-SZ is an AC/DC wall mount adapter with an 18W power rating. It delivers a stable 15V output at a maximum current of 1.2A. This adapter meets Level V efficiency standards, ensuring energy savings.
Designed for ITE (Commercial) applications, the EMS150120-P5P-SZ operates with an input voltage range of 90 to 264 VAC, making it suitable for international use. It features a convenient Multi-Blade input connector and a standard barrel plug output connector (2.1mm I.D. x 5.5mm O.D. x 9.5mm).
The adapter has a compact form factor, measuring 74.0mm x 43.5mm x 34.0mm, and a cord length of 72 inches (1.83m). Its operating temperature range is from 0°C to 40°C. The polarization is set to Positive Center.
Key specifications include a low no-load power consumption of 300mW (Max) and approval from agencies like CB and CE.
The input voltage range is 90 to 264 VAC.
Output is 15V DC at 1.2A.
The power rating is 18W.
It is a wall mount (Class II) adapter with interchangeable input blades.
Operating temperature range is 0°C to 40°C.
It uses a 2.1mm I.D. x 5.5mm O.D. x 9.5mm barrel plug with positive center polarity.
It meets Level V efficiency with maximum no-load power consumption of 300mW.
