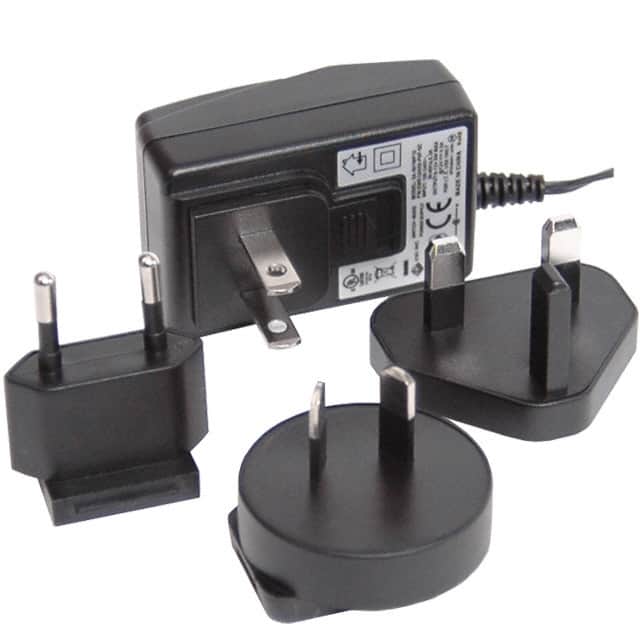

The CUI Inc. EMS150040-P5P-SZ is a versatile 6W AC/DC wall mount power supply designed for various applications. It offers a regulated 15V DC output with a maximum current of 0.4A.
Key features include a universal AC input range of 90-264V and interchangeable input blades for global use. The adapter meets EISA efficiency level IV regulations, ensuring energy efficiency. It incorporates protection against short circuits and overloads for reliable operation.
The unit has a compact mechanical design with dimensions of 64.0mm x 40.5mm x 30.0mm. It utilizes a standard barrel plug output connector (2.1mm I.D. x 5.5mm O.D. x 9.5mm) with positive center polarization. The operating temperature range is 0°C to 40°C.
Safety and EMI standards are met, including UL/cUL, CB, CE, and FCC Part 15 Class B compliance. This makes the EMS150040-P5P-SZ suitable for ITE (Commercial) applications requiring a reliable and efficient power source.
The nominal output voltage is 15V dc.
The maximum output current is 0.4A.
The total power output is 6W.
The input voltage range is 90 to 264V ac.
The operating temperature range is 0°C to 40°C.
It uses a Multi-Blade input connector.
The output connector is a Barrel Plug with 2.1mm I.D. x 5.5mm O.D. x 9.5mm length and positive center polarization.
