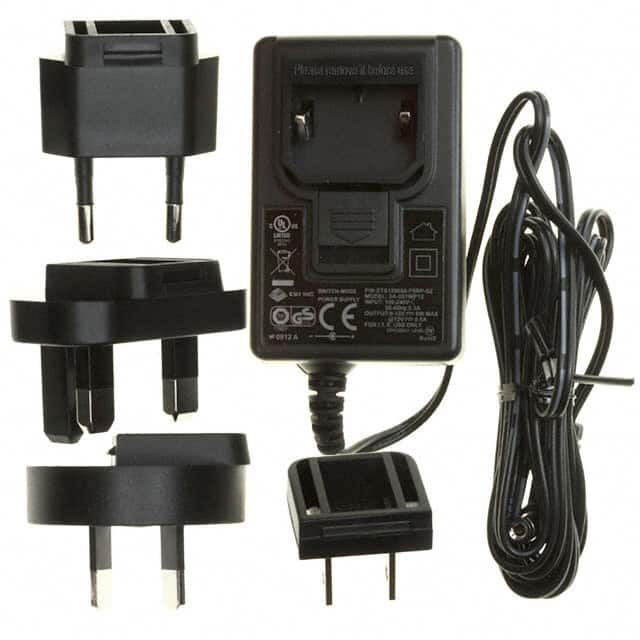

This CUI Inc. EMS120050-P5RP-SZ is a 6W AC/DC wall mount adapter designed for international use. It operates with a universal AC input voltage range of 90-264V AC and provides a regulated 12V DC output at a maximum current of 500mA.
The adapter features interchangeable input blades for global compatibility and includes protection against short circuits and overloads. Its compact dimensions of 64.0mm x 40.5mm x 30.0mm make it suitable for various applications.
Key electrical specifications include a maximum ripple of 100mVp-p, line regulation of ±1%, and load regulation of ±5%. The unit meets EISA efficiency level IV regulations and has a no-load power consumption of 0.3W maximum.
Designed for ITE (Commercial) applications, this adapter has safety approvals including CB and CE. It operates within a temperature range of 0°C to 40°C and is housed in a Class II, Wall Mount (Class II) form factor.
The output voltage is 12V DC and the maximum output current is 0.5A.
The rated input voltage range is 100 to 240 V AC, with an operating range of 90 to 264 V AC.
The operating temperature range is 0°C to 40°C.
The adapter uses a wall mount package.
Yes, it has short circuit protection that shuts down the output and auto-restarts.
The adapter meets Level IV efficiency standards.
