| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Insulation Resistance | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Ripple | |
| SVHC Present | |
| Storage Temperature | |
| Voltage | |
| Width |

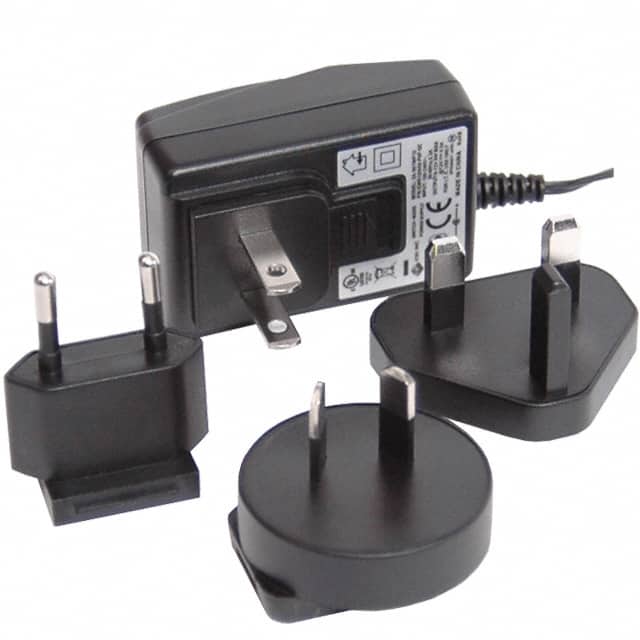

The CUI Inc. EMS120050-P5P-SZ is a versatile 6W AC/DC wall mount power adapter designed for commercial ITE applications. It offers a stable 12V DC output with a maximum current of 500mA and meets Efficiency Level IV regulations.
The adapter features a universal AC input range of 90-264V AC, making it suitable for international use. The input connector is a multi-blade type, allowing for interchangeable blades (sold separately or included depending on configuration). The output is delivered via a standard barrel plug with dimensions of 2.1mm I.D. x 5.5mm O.D. x 9.5mm.
Key electrical specifications include a maximum ripple of 100mVp-p, line regulation of ±1%, and load regulation of ±5%. It incorporates protection features such as short circuit protection with auto-restart and over voltage protection. The operating temperature range is 0°C to 40°C.
Mechanically, the unit has a compact case size of 64.0mm x 40.5mm x 30.0mm. It is designed as a Class II device. The product is RoHS compliant and meets safety approvals including CB and CE.
The nominal output voltage is 12V dc.
The maximum output current is 500mA.
The power rating is 6W.
The input voltage range is 90 to 264V AC.
The operating temperature range is 0°C to 40°C.
It uses a multi-blade input connector.
The output connector is a Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm.
