| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Automotive Grade | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Industrial Grade | |
| Input Connector | |
| Input Type | |
| Length | |
| Medical Grade | |
| Military Grade | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Voltage | |
| Width |

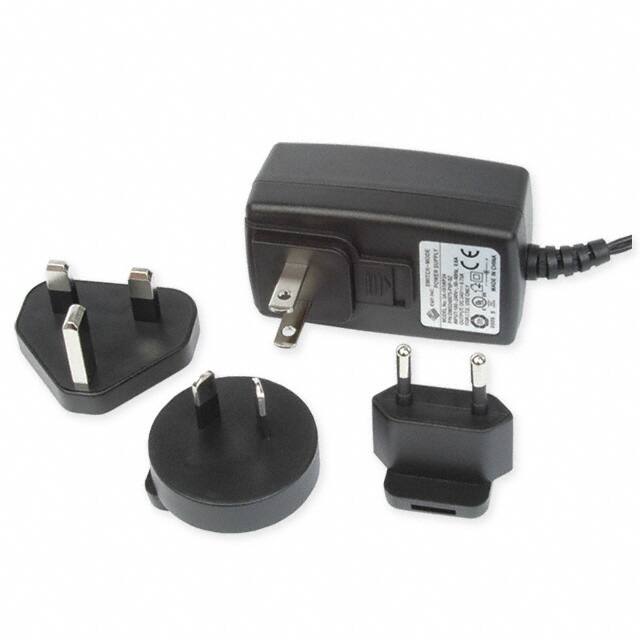

The CUI Inc. EMS060300-P5P-SZ is an AC/DC wall mount adapter designed for ITE (Commercial) applications. It delivers a stable 6V output with a maximum current of 3A, providing a total power of 18W. This adapter meets Level IV efficiency standards, ensuring energy savings.
The unit features a convenient wall mount form factor (Class II) with a positive center polarization. The output is delivered via a 2.1mm I.D. x 5.5mm O.D. barrel plug with a cord length of 39.4 inches (1.00m). The input connector is a multi-blade type, included with the adapter. It operates within a temperature range of 0°C to 40°C and has a low no-load power consumption of 300mW maximum.
Dimensions are 74.0mm x 43.5mm x 34.0mm (2.91" L x 1.71" W x 1.34" H). This adapter is suitable for international use.
The adapter provides a 6V output voltage at a maximum current of 3A.
The adapter has a power rating of 18W.
The EMS060300-P5P-SZ adapter meets Level IV efficiency standards.
The adapter can operate within a temperature range of 0°C to 40°C.
The dimensions are 74.0mm in length, 43.5mm in width, and 34.0mm in height.
It uses a barrel plug with a 2.1mm I.D. x 5.5mm O.D. x 9.5mm size.
The RoHS status is listed as RoHS3 Compliant.
