Mfr Part #:

EMS060100-P5P-SZ

Mfr Name: CUI Inc.

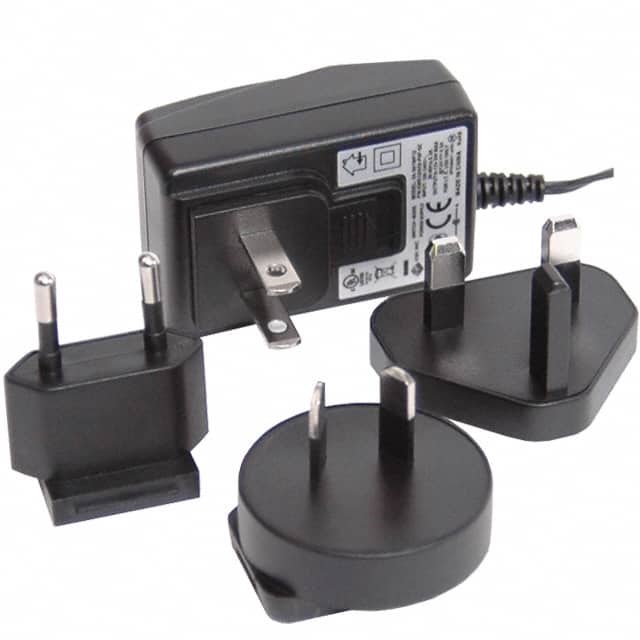

The CUI Inc. EMS060100-P5P-SZ is a 6W AC/DC wall mount adapter with a 6V, 1A regulated output. It features universal AC input and interchangeable blades.

Stock on Request

EMS060100-P5P-SZ Description

Short technical summary and product information.

The CUI Inc. EMS060100-P5P-SZ is a versatile 6W switching power supply designed as an AC/DC wall mount adapter. It accepts a universal AC input voltage range of 90-264V ac and operates at a rated frequency of 50-60 Hz.

This adapter provides a regulated 6V dc output with a maximum current of 1A, delivering up to 6W of power. Key electrical features include line regulation of ±1% and load regulation of ±5%. It incorporates protection against short circuits and overloads, with over-voltage protection shutting down the output between 140% and 200% of the nominal voltage.

The unit has a compact case size of 64mm x 40.5mm x 30mm and features a multi-blade input connector for international use. The output is delivered via a standard barrel plug (2.1mm I.D. x 5.5mm O.D. x 9.5mm) with positive center polarization. The cord length is 72 inches (1.83m).

Designed for ITE (Commercial) applications, this adapter meets EISA / efficiency level IV regulations. It has undergone safety testing with HI-POT at 3000V ac and has an insulation resistance of 100 MΩ. Compliance includes CB and CE approvals, with EMI standards met for FCC part 15 class B and CE EN55022/EN55024.

EMS060100-P5P-SZ Quick Information

Product Type: AC/DC Desktop, Wall Adapter

Canonical Name: CUI Inc. EMS060100-P5P-SZ Switching Power Supply

EMS060100-P5P-SZ Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

EMS060100-P5P-SZ Features

Provides 6V dc at 1A output.
Universal 90-264V ac input.
Interchangeable input blades included.
Short circuit and overload protection.
Meets EISA efficiency level IV.

EMS060100-P5P-SZ Applications

Powers commercial ITE equipment reliably.
Suitable for networking and communication devices.
Ideal for portable electronic and sensor systems.
Supports low-voltage LED lighting applications.

EMS060100-P5P-SZ FAQs

7 frequently asked questions generated from this part’s specifications.

What is the input voltage range of the EMS060100-P5P-SZ?

90-264 V AC rated.

What is the package form factor?

Wall mount (Class II).

What is the operating temperature range?

0°C to 40°C.

What is the output voltage and current?

6 V DC at 1 A (6 W).

What safety approvals does the adapter have?

CB and CE.

What is the efficiency level?

Level IV.

What output connector does it use?

Barrel plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm, positive center.

Category	AC DC Desktop, Wall Adapters
Manufacturer Name	CUI Inc.
Applications	ITE (Commercial)
Approval Agency	CB, CE
Cord Length	72" (1.83m)
Current	1 A
Efficiency	IV
Form	Wall Mount (Class II)
Form Factor	Wall Mount (Class II)
HI-POT	3000 V ac
Height	30.0mm (1.18")
Input Connector	Multi-Blade
Input Type	Multi-Blade (Included)
Input Voltage	90-264 V ac
Insulation Resistance	100 MΩ
Length	64.0mm (2.52")
No Load Power Consumption	0.3 W
Operating Temperature	0°C ~ 40°C
Output Connector	Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm
Polarization	Positive Center
Power (Watts)	6 W
Region Utilized	International
Ripple	100 mVp-p
SVHC Present	Not Present
Storage Temperature	-10°C ~ 70°C
Voltage	6 V dc
Width	40.5mm (1.59")
