| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Frequency | |
| Input Type | |
| Input Voltage | |
| Insulation Resistance | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Output Current | |
| Output Voltage | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Ripple | |
| Storage Temperature | |
| Voltage | |
| Width |

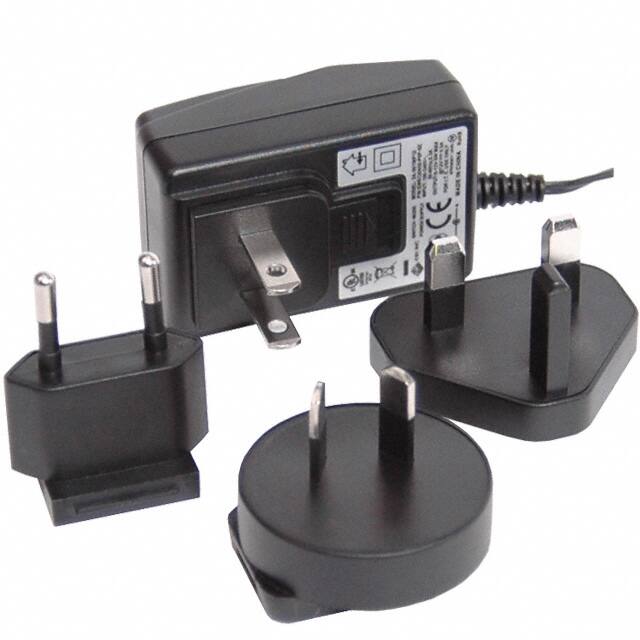

The CUI Inc. EMS050120-P5P-SZ is a versatile 6W AC/DC switching power supply designed for wall mounting. It accepts a universal AC input voltage range of 90-264V ac and operates at rated frequencies of 50-60 Hz.
This adapter delivers a regulated 5V dc output with a maximum current of 1.2A, providing a total of 6W of power. Key electrical features include ±1% line regulation and ±5% load regulation, along with over-voltage and short-circuit protection with auto-restart. It meets EISA / efficiency level IV regulations.
The unit is housed in a compact case measuring 64.0mm x 40.5mm x 30.0mm and features a multi-blade input connector for international use. The output connector is a standard barrel plug with 2.1mm inner diameter and 5.5mm outer diameter, and positive center polarization. The cord length is 1.83 meters (72 inches).
Environmental specifications include an operating temperature range of 0°C to 40°C and operating humidity of 20% to 80%. Safety approvals include UL/cUL, CB, and CE. The device is RoHS3 compliant.
The rated input voltage is 100-240VAC, with a range of 90-264VAC.
It is a wall mount (Class II) adapter measuring 64.0mm x 40.5mm x 30.0mm.
0°C to 40°C.
5V DC at up to 1.2A.
UL/cUL, CB, and CE (EN60950-1).
2.1mm I.D. x 5.5mm O.D. barrel plug, center positive.
Over voltage protection (140-200% of output) and short circuit protection with auto-restart.
