| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Length | |
| Medical Grade | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Voltage | |
| Width |

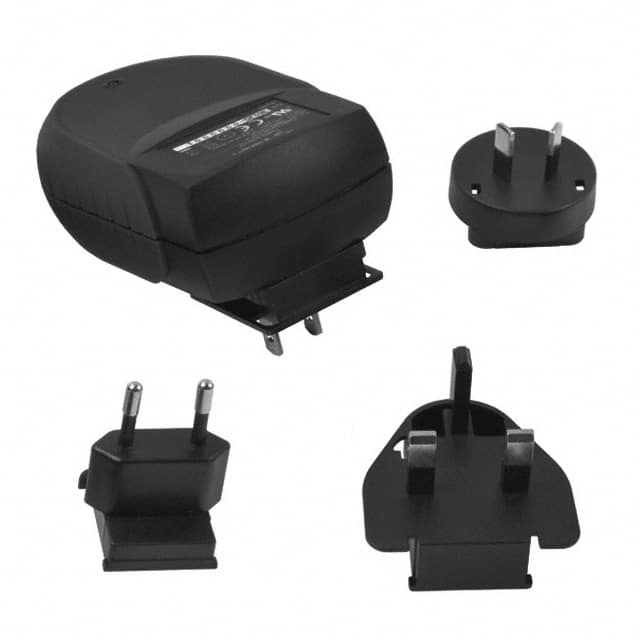

The CUI Inc. EMMA240125-P5P-IC is an AC/DC wall mount adapter designed for international use, delivering 30W of power with a 24V output. This adapter meets Level V efficiency standards, ensuring energy savings. It features a versatile multi-blade input connector and a standard barrel plug output (2.1mm I.D. x 5.5mm O.D.).
The adapter operates within a temperature range of 0°C to 40°C and has a no-load power consumption of a maximum of 300mW. Its dimensions are 108.7mm in length, 62.0mm in width, and 36.7mm in height. The unit is designed as a Class II wall mount adapter, suitable for various applications, including medical.
Compliance is met with standards such as 55011 Class B, 60601-1, and others, with approvals from EN, FCC, SIQ, TUV, and UL. The RoHS status is RoHS3 Compliant, and it is REACH Unaffected. The Moisture Sensitivity Level (MSL) is 1 Unlimited.
The EMMA240125-P5P-IC provides an output voltage of 24V and an output current of 1.25A.
The power rating of the EMMA240125-P5P-IC adapter is 30W.
The operating temperature range for the EMMA240125-P5P-IC is 0°C to 40°C.
The dimensions of the EMMA240125-P5P-IC are 108.7mm in length, 62.0mm in width, and 36.7mm in height.
The EMMA240125-P5P-IC uses a Barrel Plug with 2.1mm I.D. x 5.5mm O.D. and a 9.5mm length.
Yes, the EMMA240125-P5P-IC is RoHS3 Compliant.
The Moisture Sensitivity Level (MSL) for the EMMA240125-P5P-IC is 1 Unlimited.
