| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Frequency | |
| Height | |
| Input Connector | |
| Input Type | |
| Length | |
| Mounting Type | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Output Current | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Storage Temperature | |
| Temperature Coefficient | |
| Voltage | |
| Weight | |
| Width |
The CUI Inc. EMMA050200-P5P-IC is a medical-grade AC-DC power supply from the EMMA series, delivering up to 10W of power with a single 5Vdc regulated output. It operates with a universal input voltage range of 90-264 Vac and meets Level V efficiency standards.
Designed for medical applications, this power supply complies with IEC 60601-1 4th edition safety standards and is suitable for 2 x MOPP applications. It includes over-voltage and short-circuit protections for enhanced reliability.

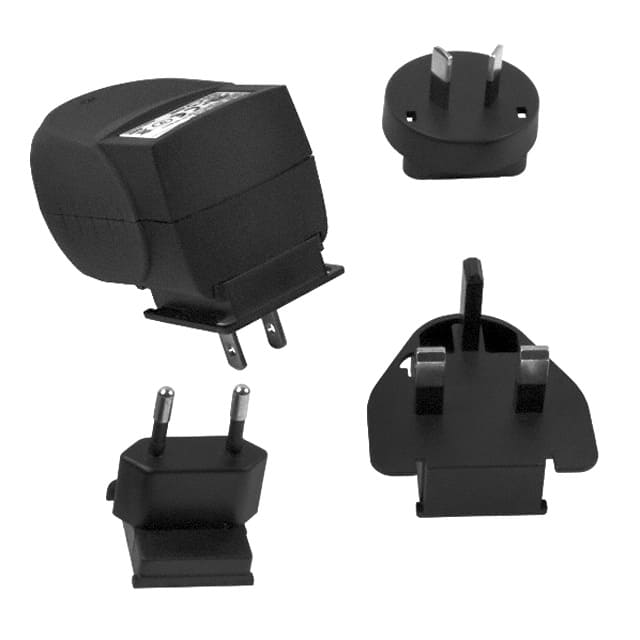

The unit is housed in a compact wall-mount (Class II) package with dimensions of 80.6mm x 47.9mm x 43.3mm. It features a multi-blade input connector and a standard barrel plug output. The operating temperature range is 0°C to 50°C.
90 to 264 Vac.
5 Vdc.
0°C to 50°C.
Wall mount (Class II) with a 1.8m cord.
2 A.
0.3 W.
Over voltage protection via TVS clamp and short circuit protection with continuous auto restart.
