| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Package / Case | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

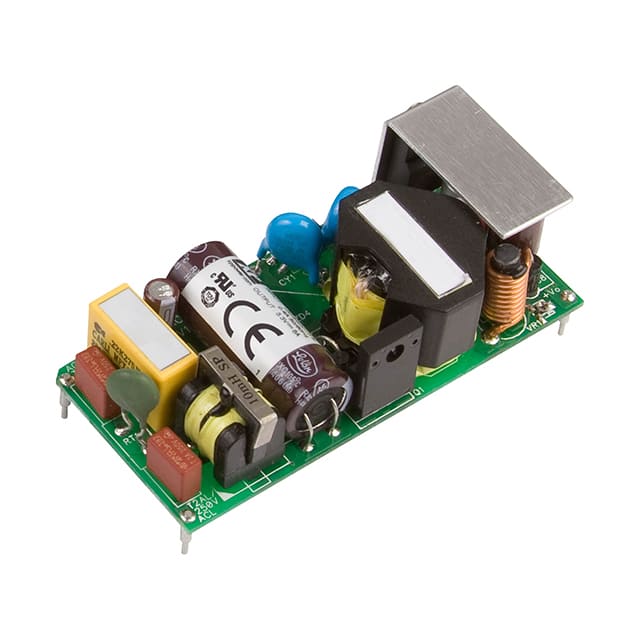

The XP Power EML30US24-P is part of the EML30 series of open frame AC-DC power supplies designed for medical applications. This model provides a single 24VDC output at 1.25A, delivering a total of 30W of power.
Key electrical specifications include a wide input voltage range of 85-264 VAC, with a typical efficiency of 82%. The unit is designed for through-hole mounting and has a 4-DIP module package. It operates within a temperature range of -20°C to 70°C with derating.
This power supply meets EMC standards EN55032/11 Level B for conducted and radiated emissions and holds safety approvals including CB, TUV, and UL, conforming to standards like EN60601-1. It is suitable for medical and home healthcare applications, offering features like universal input and peak load capability.
The dimensions are 75.2mm x 34.6mm x 26.7mm. The EML30 series offers flexibility with various mechanical options and is designed for easy integration into healthcare products.
The EML30US24-P has a nominal output voltage of 24 VDC.
The nominal output current for the EML30US24-P is 1.25 A.
The maximum output power for the EML30US24-P is 30 W.
The input voltage range is 85 to 264 VAC and 120 to 370 VDC.
The operating temperature range is -20°C to 70°C, with derating.
The dimensions are 75.2mm x 34.6mm x 26.7mm.
It has safety approvals from CB, TUV, and UL.
