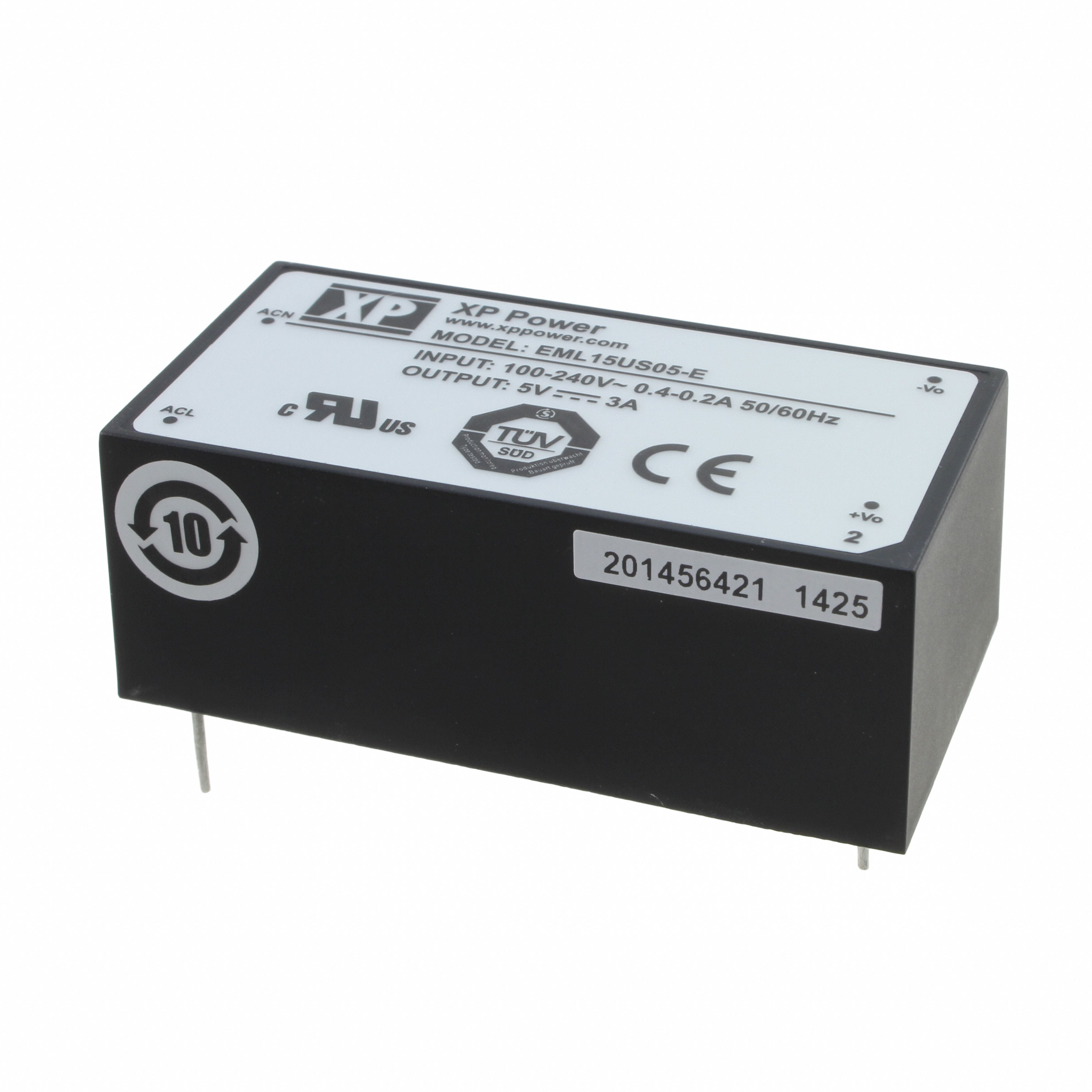

The XP Power EML15US05-E is an enclosed AC/DC converter designed for various applications. It provides 15W of power with a single output current of 3A. The converter accepts a wide input voltage range from 85 to 264 VAC, making it suitable for global use.
This model features Through Hole mounting and comes in a 4-DIP Module package. Its dimensions are 65.0mm in length, 33.3mm in width, and 24.4mm in height. The operating temperature range is -20°C to 70°C with derating. It has an efficiency of 78% and includes features like Universal Input and compliance with standard 60601-1.
The EML15US05-E is specified for Medical applications and holds CE, cULus, and TUV approval agencies. It is RoHS3 Compliant, has an MSL of 1, and is REACH Unaffected.
The EML15US05-E has an output current of 3A.
The input voltage range is 85 to 264 VAC.
The EML15US05-E has a power rating of 15W.
The operating temperature range is -20°C to 70°C, with derating.
The EML15US05-E uses Through Hole mounting.
The dimensions are 65.0mm in length, 33.3mm in width, and 24.4mm in height.
Yes, the EML15US05-E is RoHS3 Compliant.
