| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,300 pcs
|
2300 pcs | On Request | 1 | On Request | On Request | 1146 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Capacitance | |
| ESD Protection | |
| Filter Order | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Channels | |
| Operating Temperature | |
| Resistance | |
| Technology | |
| Type | |
| Values | |
| Width |
The EMIF10-COM01F2 from STMicroelectronics is a 10-channel, 2nd-order low-pass EMI filter built with an RC (Pi) network topology. It is designed to suppress electromagnetic interference on data lines in mobile devices, providing a series resistance of 200Ω and a total capacitance of 45pF per the stated design values.
The filter includes ESD protection, making it suitable for data line applications where both EMI filtering and electrostatic discharge robustness are required. Its 10-channel configuration allows simultaneous filtering of multiple signal lines in a compact footprint.

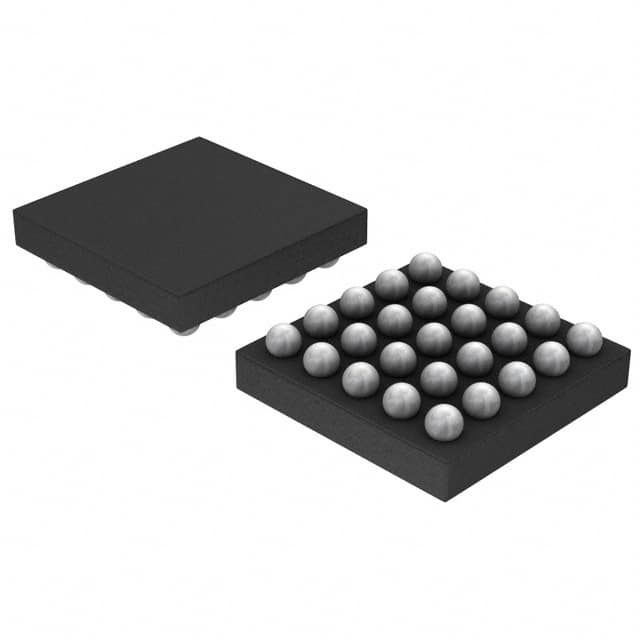

The device is supplied in a surface-mount 25-WFBGA package, also designated as FCBGA, with dimensions of 2.39mm x 2.39mm and a height of 0.70mm. It operates over a temperature range of -40°C to +85°C, supporting typical consumer and portable electronics environments.
| Qty | Low | High |
|---|---|---|
| 5,000+ | $0.42 | $0.42 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The EMIF10-COM01F2 is offered in a surface-mount 25-WFBGA, FCBGA package measuring 2.39mm x 2.39mm x 0.70mm.
The operating temperature range is -40°C to +85°C.
The existing data lists the device as RoHS3 compliant, but this status is unverified.
It is a 2nd-order low-pass RC (Pi) network filter.
The filter provides 10 channels.
The filter has 200Ω series resistance and 45pF total capacitance.
Yes, the filter includes ESD protection.
