| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
15,000 pcs
|
15000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Center | |
| ESD Protection | |
| Filter Order | |
| Halogen Free | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Channels | |
| Operating Temperature | |
| Resistance | |
| SVHC Present | |
| Technology | |
| Type | |
| Values | |
| Width |
The EMIF06-MSD04F3 from STMicroelectronics is a 6-channel, 2nd-order low-pass EMI filter built with an RC (Pi) technology. It provides R = 40Ω and C = 7.5pF total capacitance, with a typical cutoff frequency of 550MHz. The filter includes ESD protection for data lines used in mobile devices.

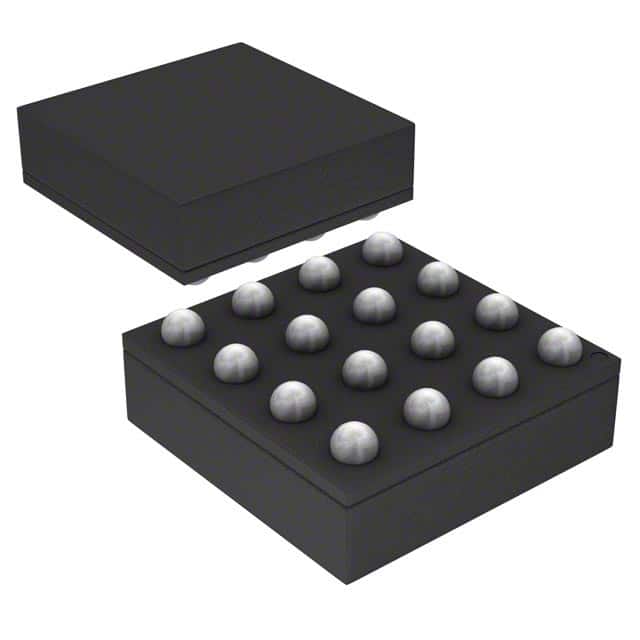

This surface-mount filter is offered in a 16-WFBGA/FCBGA package with a 1.54mm x 1.54mm footprint and 0.65mm height. Its -40°C to 85°C operating temperature range supports portable and consumer applications. The passive RC topology requires no external power and helps reduce high-frequency noise on signal lines.
The component is RoHS3 compliant and has an MSL rating of 1 (unlimited) according to the product record.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.47 | $0.47 |
| 10+ | $0.38 | $0.38 |
| 25+ | $0.35 | $0.35 |
| 50+ | $0.33 | $0.33 |
| 100+ | $0.31 | $0.31 |
| 250+ | $0.28 | $0.28 |
| 500+ | $0.27 | $0.27 |
| 1,000+ | $0.25 | $0.25 |
| 5,000+ | $0.22 | $0.22 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
-40°C to 85°C.
16-WFBGA, FCBGA surface-mount package.
It is listed as RoHS3 Compliant in the product record.
The typical cutoff frequency is 550MHz.
It has 6 channels and includes ESD protection.
R = 40Ω and C = 7.5pF total.
