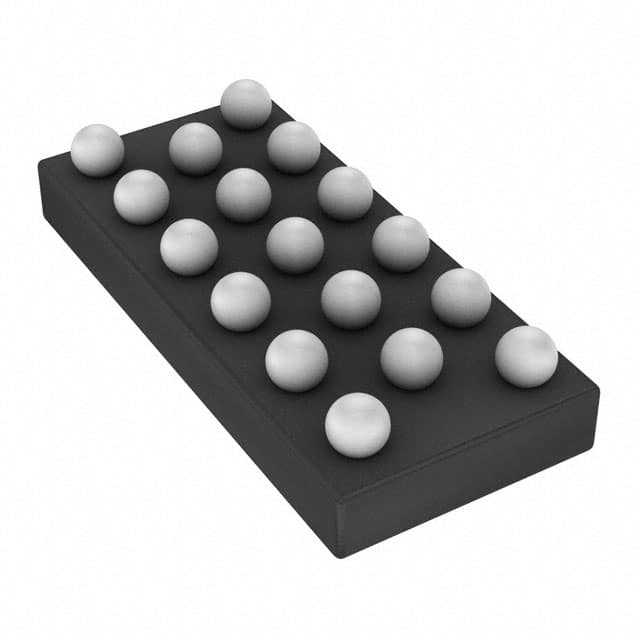

EMIF06-HSD03F3 A 6-channel low pass RLC filter from STMicroelectronics, featuring 1 nH inductance and 2.5 pF capacitance. It includes ESD protection and is designed for data lines in mobile devices.
Mfr Part #:

EMIF06-HSD03F3

Available from 2 distributors
Mfr Name: STMicroelectronics
STMicroelectronics
A 6-channel low pass RLC filter from STMicroelectronics, featuring 1 nH inductance and 2.5 pF capacitance. It includes ESD protection and is designed for data lines in mobile devices.
✓ Total Stock: 8,818 pcs
$ Price Range: $0.22 - $0.57

EMIF06-HSD03F3 Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Fe Components ✓
Non-Authorised Inventory information
5,000 pcs
On Request
5000 pcs On Request 1 On Request On Request On Request On Request On Request
Smaxon Electronics ✓
Non-Authorised Inventory information
3,818 pcs
On Request
3818 pcs On Request 1 On Request On Request 16+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

EMIF06-HSD03F3 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
ESD Protection
Filter Order
Height
Length
Mounting Type
Number of Channels
Operating Temperature
Resistance
Technology
Type
Values
Width
View Similar Products (0)

EMIF06-HSD03F3 Description

Short technical summary and product information.

The EMIF06-HSD03F3 is a 3rd-order low pass RLC filter from STMicroelectronics, designed for EMI filtering and ESD protection on data lines. It integrates six independent channels, each with an inductance of 1 nH and a capacitance of 2.5 pF, along with a 1 Ohm series resistance. The filter provides ESD protection, making it suitable for mobile device interfaces where space is critical.



This filter is surface-mounted in a compact 17-WFBGA/FCBGA package with dimensions of 2.40 mm x 1.10 mm x 0.65 mm. It operates over a temperature range of -30°C to 85°C, meeting the environmental requirements of portable electronics. The RLC technology ensures effective suppression of high-frequency noise while maintaining signal integrity.



Typical applications include data line filtering in smartphones, tablets, and other mobile devices, where reducing electromagnetic interference and protecting against electrostatic discharge are essential.

EMIF06-HSD03F3 Quick Information

Product Type: EMI/RFI Filter (LC, RC Networks)
Canonical Name: EMIF06-HSD03F3 Low Pass RLC Filter
Subcategory: RLC Filter

EMIF06-HSD03F3 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 (Unlimited)
REACH Status: REACH Unaffected

EMIF06-HSD03F3 Estimated Pricing

Qty Low High
1+ $0.57 $0.57
10+ $0.46 $0.46
25+ $0.43 $0.43
50+ $0.40 $0.40
100+ $0.38 $0.38
250+ $0.35 $0.35
500+ $0.33 $0.33
1,000+ $0.31 $0.31
5,000+ $0.27 $0.27
10,000+ $0.25 $0.25
15,000+ $0.24 $0.24
25,000+ $0.23 $0.23
35,000+ $0.22 $0.22

Estimated market price range - modelled values for guidance only, not live distributor offers.

EMIF06-HSD03F3 Features

  • 6-channel low pass RLC filter.
  • 1 nH inductance and 2.5 pF capacitance.
  • Integrated ESD protection.
  • Surface mount 17-WFBGA package.
  • Operating temperature -30°C to 85°C.

EMIF06-HSD03F3 Applications

  • Used in mobile device data lines.
  • Suitable for EMI filtering in portable electronics.
  • Protects against ESD in data interfaces.

EMIF06-HSD03F3 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the filter type of the EMIF06-HSD03F3?

The filter is a low pass RLC filter.

How many channels does the EMIF06-HSD03F3 have?

It has 6 channels.

What are the inductance and capacitance values?

Each channel has 1 nH inductance and 2.5 pF capacitance.

Does the EMIF06-HSD03F3 include ESD protection?

Yes, it includes ESD protection.

What is the operating temperature range?

The operating temperature range is -30°C to 85°C.

What is the package type for this filter?

The filter is available in a 17-WFBGA and FCBGA package.

Is the EMIF06-HSD03F3 RoHS compliant?

It is listed as RoHS3 compliant, but this information is unverified.
