EMIF06-1005M12 The EMIF06-1005M12 is a 6-channel RC (Pi) low pass filter from STMicroelectronics. It features 100 Ohm resistance and 45pF total capacitance, providing -34dB attenuation from 900MHz to 1.8GHz.
Mfr Part #:

EMIF06-1005M12

Available from 4 distributors
Mfr Name: STMicroelectronics
STMicroelectronics
The EMIF06-1005M12 is a 6-channel RC (Pi) low pass filter from STMicroelectronics. It features 100 Ohm resistance and 45pF total capacitance, providing -34dB attenuation from 900MHz to 1.8GHz.
✓ Total Stock: 391,111 pcs
$ Price Range: $0.17 - $0.42

EMIF06-1005M12 Available from 4 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Romaks Technologies ✓
Non-Authorised Inventory information
361,600 pcs
On Request
361600 pcs On Request 1 On Request On Request On Request On Request On Request
Fe Components ✓
Non-Authorised Inventory information
15,000 pcs
On Request
15000 pcs On Request 1 On Request On Request On Request On Request On Request
Smaxon Electronics ✓
Non-Authorised Inventory information
9,000 pcs
On Request
9000 pcs On Request 1 On Request On Request 09+ On Request On Request
Optech Co.,Limited ✓
Non-Authorised Inventory information
5,511 pcs
On Request
5511 pcs On Request 1 On Request On Request 09+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

EMIF06-1005M12 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Attenuation Value
ESD Protection
Filter Order
Height
Lead Style
Length
Mounting Type
Number of Channels
Operating Temperature
Resistance
Technology
Type
Values
Width
View Similar Products (0)

EMIF06-1005M12 Description

Short technical summary and product information.

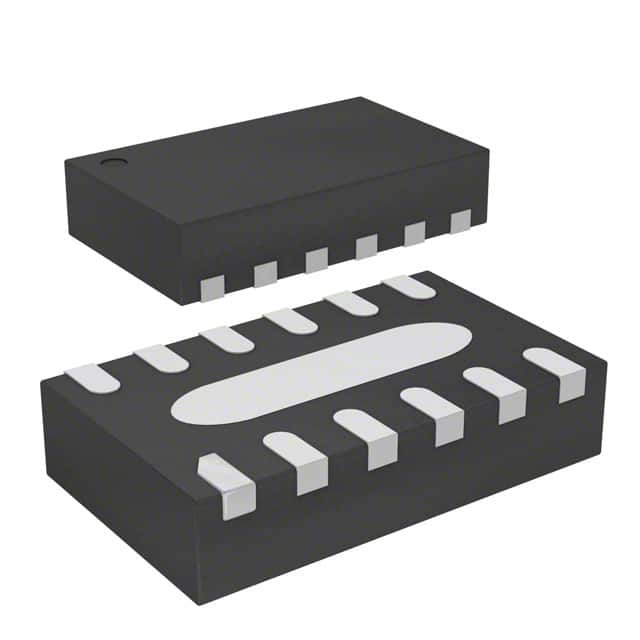

The EMIF06-1005M12 is a 6-channel RC (Pi) low pass filter designed for EMI filtering in data line applications. It integrates six independent RC filter sections, each with a 100 Ohm resistor and a total capacitance of 45pF, achieving a nominal attenuation of -34dB across the 900MHz to 1.8GHz frequency range. The filter also includes ESD protection, making it suitable for safeguarding sensitive data lines in mobile devices.



This filter is housed in a compact 12-UFDFN exposed pad package, measuring 2.50mm x 1.50mm x 0.60mm, and is designed for surface mount assembly. It operates over a temperature range of -40°C to 85°C, ensuring reliable performance in various environmental conditions. The RC (Pi) topology provides effective suppression of high-frequency noise while maintaining signal integrity for low-frequency data signals.

EMIF06-1005M12 Quick Information

Product Type: EMI/RFI Filter (RC Network)
Series: EMIF06
Canonical Name: EMIF06-1005M12 RC (Pi) Low Pass Filter
Subcategory: Low Pass Filter

EMIF06-1005M12 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

EMIF06-1005M12 Estimated Pricing

Qty Low High
1+ $0.42 $0.42
10+ $0.34 $0.34
25+ $0.31 $0.31
50+ $0.30 $0.30
100+ $0.28 $0.28
250+ $0.26 $0.26
500+ $0.24 $0.24
1,000+ $0.23 $0.23
3,000+ $0.21 $0.21
6,000+ $0.19 $0.19
9,000+ $0.19 $0.19
15,000+ $0.18 $0.18
21,000+ $0.17 $0.17
30,000+ $0.17 $0.17

Estimated market price range - modelled values for guidance only, not live distributor offers.

EMIF06-1005M12 Features

  • 6-channel RC (Pi) low pass filter.
  • 100 Ohm resistance and 45pF capacitance.
  • -34dB attenuation from 900MHz to 1.8GHz.
  • Integrated ESD protection.
  • Surface mount 12-UFDFN exposed pad package.

EMIF06-1005M12 Applications

  • EMI filtering for data lines in mobile devices.
  • Suppresses high-frequency noise in portable electronics.
  • Protects sensitive circuits from electrostatic discharge.

EMIF06-1005M12 FAQs

5 frequently asked questions generated from this part’s specifications.
What is the package type of the EMIF06-1005M12?

The EMIF06-1005M12 is housed in a 12-UFDFN exposed pad package.

What is the operating temperature range of the EMIF06-1005M12?

The operating temperature range is -40°C to 85°C.

Is the EMIF06-1005M12 RoHS compliant?

The RoHS status is listed as RoHS3 Compliant, but this is unverified and should be confirmed with the manufacturer.

What is the attenuation of the EMIF06-1005M12?

The filter provides a nominal attenuation of -34dB from 900MHz to 1.8GHz.

How many channels does the EMIF06-1005M12 have?

The EMIF06-1005M12 has 6 channels.
