EMIF04-1502M8 The EMIF04-1502M8 is a 4-line low pass RC (Pi) EMI filter with integrated ESD protection from STMicroelectronics. It features 170 Ω series resistance, 14 pF typical line capacitance, and ESD withstand up to 15 kV air discharge on input pins.
Mfr Part #:

EMIF04-1502M8

Available from 1 distributors
Mfr Name: STMicroelectronics
STMicroelectronics
The EMIF04-1502M8 is a 4-line low pass RC (Pi) EMI filter with integrated ESD protection from STMicroelectronics. It features 170 Ω series resistance, 14 pF typical line capacitance, and ESD withstand up to 15 kV air discharge on input pins.
✓ Total Stock: 130,000 pcs
$ Price Range: $0.39

EMIF04-1502M8 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Components Technology Group, Inc. ✓
Non-Authorised Inventory information
130,000 pcs
On Request
130000 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

EMIF04-1502M8 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
ESD Protection
Filter Order
Height
Junction Temperature
Length
Mounting Type
Number of Channels
Operating Temperature
Resistance
Storage Temperature
Tape & Reel
Technology
Type
Values
Width
View Similar Products (0)

EMIF04-1502M8 Description

Short technical summary and product information.

The EMIF04-1502M8 is a 4-line, highly integrated low pass EMI filter designed to suppress EMI/RFI noise in systems exposed to electromagnetic interference. It uses an RC (Pi) topology with a 2nd order filter configuration, providing 170 Ω series resistance and a typical line capacitance of 14 pF at 2.5 V.



This device includes ESD protection circuitry that prevents damage from electrostatic discharges up to 15 kV air discharge and 8 kV contact discharge on input pins, complying with IEC 61000-4-2 level 4. Output pins are rated for 4 kV contact discharge. The filter also meets MIL STD 883G Method 3015-7 Class 3A for all pins.

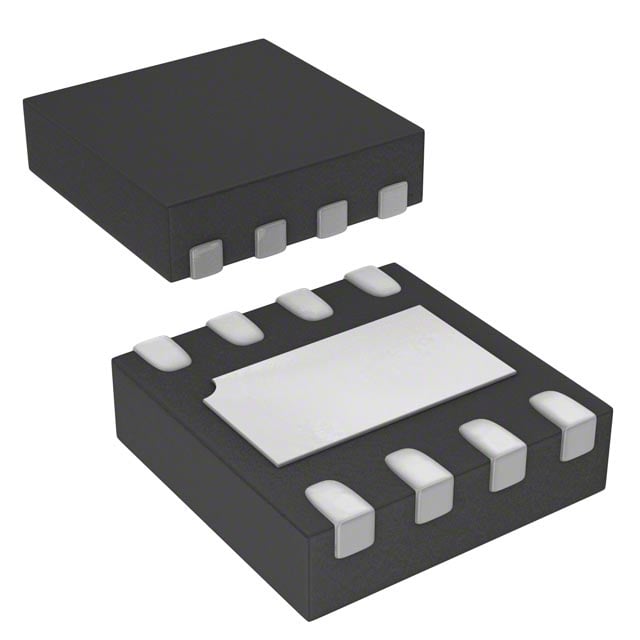

The EMIF04-1502M8 is housed in a compact 8-UFDFN exposed pad package measuring 1.70 mm x 1.50 mm x 0.65 mm, suitable for surface mount assembly. It operates over a temperature range of -40°C to +85°C and is lead-free. Typical applications include EMI filtering in mobile devices, LCD and camera modules, computers, printers, and communication systems.

EMIF04-1502M8 Quick Information

Product Type: EMI/RFI Filter (RC Network)
Series: EMIF
Canonical Name: EMIF04-1502M8 4-line Low Pass RC (Pi) EMI Filter and ESD Protection
Subcategory: RC (Pi) Network

EMIF04-1502M8 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

EMIF04-1502M8 Estimated Pricing

Qty Low High
3,000+ $0.39 $0.39

Estimated market price range - modelled values for guidance only, not live distributor offers.

EMIF04-1502M8 Features

  • 4-line low pass RC (Pi) EMI filter.
  • 170 Ω series resistance per channel.
  • 14 pF typical line capacitance at 2.5 V.
  • ESD protection up to 15 kV air discharge.
  • Compact 8-UFDFN surface mount package.

EMIF04-1502M8 Applications

  • EMI filtering in mobile phone LCD and camera modules.
  • Noise suppression in computer and printer circuits.
  • ESD protection for data lines in communication systems.
  • Used in MCU boards and portable electronics.

EMIF04-1502M8 FAQs

5 frequently asked questions generated from this part’s specifications.
What is the operating temperature range of the EMIF04-1502M8?

The operating temperature range is -40°C to +85°C.

What package does the EMIF04-1502M8 come in?

It comes in an 8-UFDFN exposed pad surface mount package measuring 1.70 mm x 1.50 mm x 0.65 mm.

Is the EMIF04-1502M8 RoHS compliant?

The datasheet indicates a lead-free package, but the RoHS status is unverified. It is listed as RoHS3 Compliant with low confidence.

What is the ESD protection rating of the EMIF04-1502M8?

Input pins withstand 15 kV air discharge and 8 kV contact discharge per IEC 61000-4-2 level 4. Output pins withstand 4 kV contact discharge.

What is the series resistance of each filter channel?

Each channel has a series resistance of 170 Ω.
