The EMIF03-SIM02M8 is a 3-line integrated RC (Pi) EMI filter designed to suppress EMI/RFI noise in applications exposed to electromagnetic interference. Manufactured by STMicroelectronics, this device includes ESD protection circuitry capable of withstanding surges up to 15 kV (air discharge) on external pins per IEC 61000-4-2 level 4.
The filter offers resistance values of 47 Ohms and 100 Ohms with a typical capacitance of 17 pF (maximum 20 pF). It is housed in a compact 8-UFDFN package with exposed pad, measuring 1.70 mm x 1.50 mm x 0.60 mm, suitable for surface mount assembly. The operating temperature range is -40°C to 85°C.
This component is specifically designed for SIM card applications in mobile devices and other data line filtering where ESD protection is required. The monolithic integration reduces parasitic elements and improves reliability compared to discrete solutions.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.50 | $0.50 |
| 10+ | $0.41 | $0.41 |
| 25+ | $0.37 | $0.37 |
| 50+ | $0.35 | $0.35 |
| 100+ | $0.33 | $0.33 |
| 250+ | $0.30 | $0.30 |
| 500+ | $0.29 | $0.29 |
| 1,000+ | $0.27 | $0.27 |
| 3,000+ | $0.24 | $0.24 |
| 6,000+ | $0.23 | $0.23 |
| 9,000+ | $0.22 | $0.22 |
| 15,000+ | $0.21 | $0.21 |
| 21,000+ | $0.21 | $0.21 |
| 30,000+ | $0.20 | $0.20 |
Estimated market price range - modelled values for guidance only, not live distributor offers.

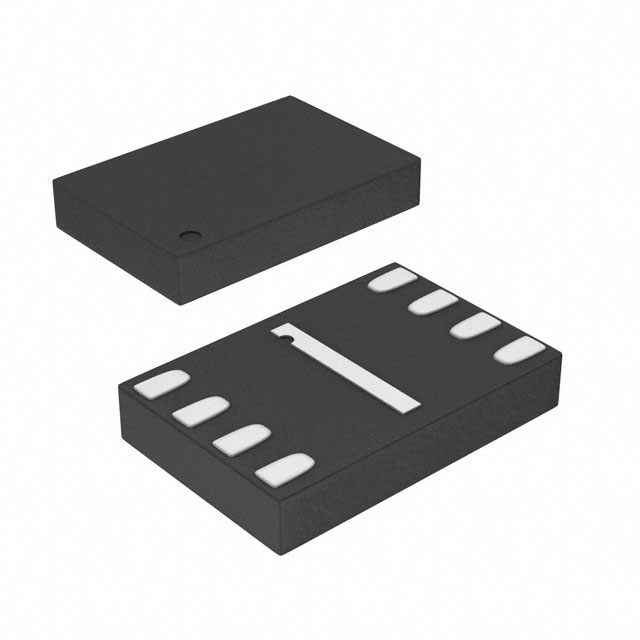

The EMIF03-SIM02M8 is housed in an 8-UFDFN Exposed Pad surface mount package measuring 1.70 mm x 1.50 mm x 0.60 mm.
The operating temperature range is -40°C to 85°C.
The component is marked as RoHS3 Compliant and Lead Free, though the RoHS status is unverified.
It provides ESD protection up to 15 kV air discharge and 8 kV contact discharge on external pins per IEC 61000-4-2 level 4, and 2 kV on internal pins.
The filter has resistors of 47 Ohms and 100 Ohms, and a typical capacitance of 17 pF (maximum 20 pF).
